F2.5AMH (2004)
VALVE

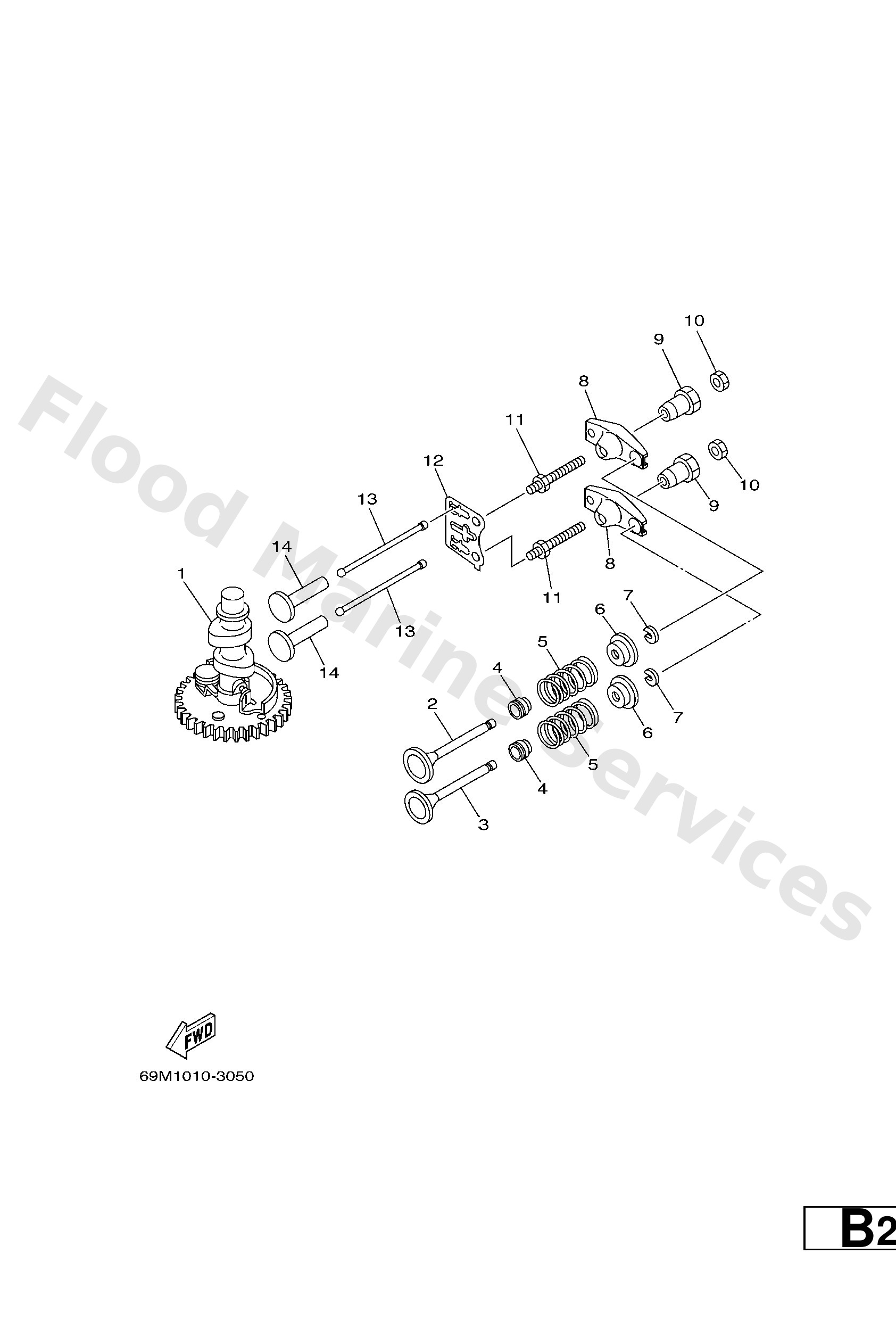

Diagram: VALVE
Parts List
Reference
Description
Price
1
69M1217020
-
Loading…
↗
2
67D1211100
Valve, intake
Loading…
↗
3
67D1212100
Valve, exhaust
Loading…
↗
4
51Y1211900
Seal, valve stem
Loading…
↗
5
68DE211300
Spring, valve inne
Loading…
↗
6
7NJ1211700
Retainer, valve spring
Loading…
↗
7
7NJ1211800
Cotter, valve
Loading…
↗
8
67D1215100
Arm, valve rocker
Loading…
↗
9
7FK1216500
Pivot, rocker arm
Loading…
↗
10
7FK1215800
Nut, lock
Loading…
↗
11
67D1215700
Bolt
Loading…
↗
12
69ME215500
Guide, push rod
Loading…
↗
13
69M1215400
Rod, valve push
Loading…
↗
14
JA91215300
Lifter, valve
Loading…
↗
