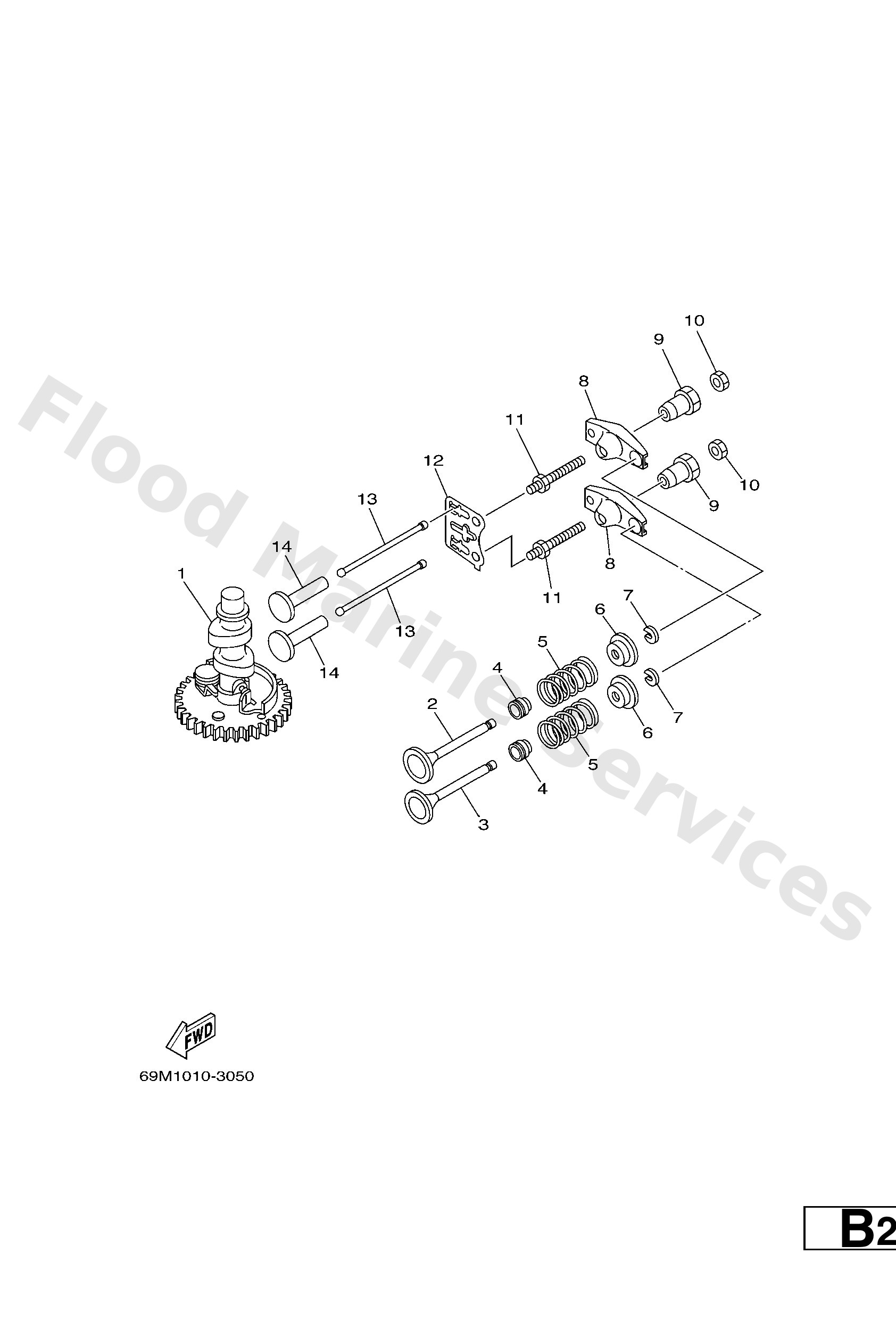

Diagram: VALVE
Parts List
Valve, intake
Diagram Reference: 2
Valve, exhaust
Diagram Reference: 3
Seal, valve stem
Diagram Reference: 4
Spring, valve inne
Diagram Reference: 5
Retainer, valve spring
Diagram Reference: 6
Cotter, valve
Diagram Reference: 7
Arm, valve rocker
Diagram Reference: 8
Pivot, rocker arm
Diagram Reference: 9
Nut, lock
Diagram Reference: 10
Bolt
Diagram Reference: 11
Guide, push rod
Diagram Reference: 12
Rod, valve push
Diagram Reference: 13
Lifter, valve
Diagram Reference: 14
