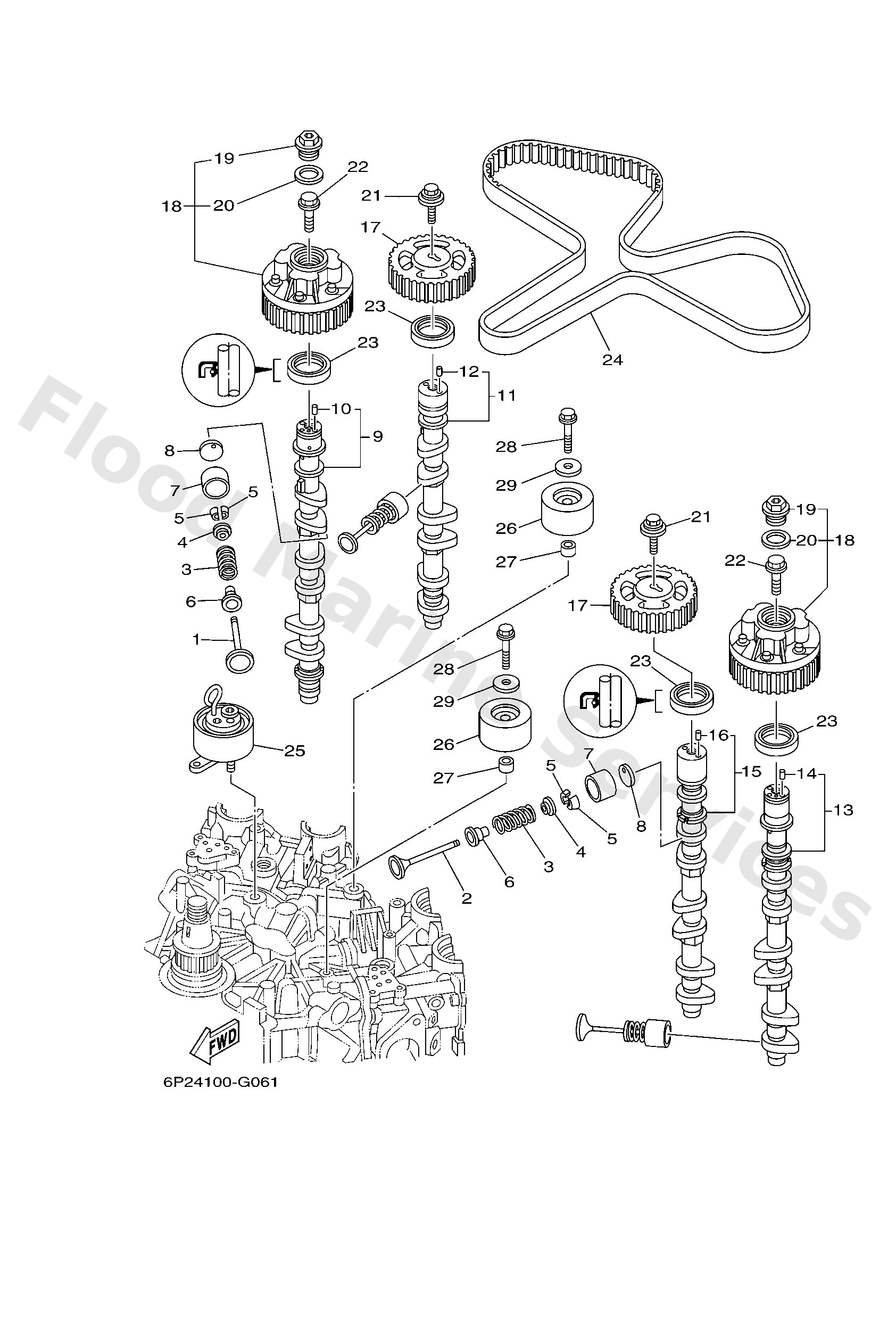

Diagram: VALVE
Parts List
Valve, intake
Diagram Reference: 1
Valve, exhaust
Diagram Reference: 2
Spring, valve inner
Diagram Reference: 3
Retainer, valve spring
Diagram Reference: 4
Cotter, Valve
Diagram Reference: 5
Seal, Valve Stem
Diagram Reference: 6
Lifter, Valve
Diagram Reference: 7
Pad, adjusting (2.540)
Diagram Reference: 8
Pad, adjusting (2.520)
Diagram Reference: 8
Pad, adjusting (2.560)
Diagram Reference: 8
Pad, adjusting (2.580)
Diagram Reference: 8
Pad, adjusting (2.600)
Diagram Reference: 8
Pad, adjusting (2.620)
Diagram Reference: 8
Pad, adjusting (2.640)
Diagram Reference: 8
Pad, Adjusting (2.660)
Diagram Reference: 8
Pad, adjusting (2.680)
Diagram Reference: 8
Pad, adjusting (2.700)
Diagram Reference: 8
Pad, adjusting (2.500)
Diagram Reference: 8
Pad, adjusting (2.320)
Diagram Reference: 8
Pad, adjusting (2.340)
Diagram Reference: 8
Pad, adjusting (2.360)
Diagram Reference: 8
Pad, adjusting (2.380)
Diagram Reference: 8
Pad, adjusting (2.400)
Diagram Reference: 8
Pad, adjusting (2.420)
Diagram Reference: 8
Pad, adjusting (2.440)
Diagram Reference: 8
Pad, adjusting (2.460)
Diagram Reference: 8
Pad, adjusting (2.480)
Diagram Reference: 8
Pad, adjusting (2.960)
Diagram Reference: 8
Pad, adjusting (2.940)
Diagram Reference: 8
Pad, adjusting (2.920)
Diagram Reference: 8
Pad, Adjusting (2.780)
Diagram Reference: 8
Pad, adjusting (2.900)
Diagram Reference: 8
Pad, adjusting (2.880)
Diagram Reference: 8
Pad, adjusting (2.860)
Diagram Reference: 8
Pad, adjusting (2.820)
Diagram Reference: 8
Pad, adjusting (2.800)
Diagram Reference: 8
Pad, adjusting (2.760)
Diagram Reference: 8
Pad, adjusting (2.740)
Diagram Reference: 8
Pad, adjusting (2.720)
Diagram Reference: 8
Pad, Adjusting (2.840)
Diagram Reference: 8
Camshaft 1
Diagram Reference: 9
Camshaft 2
Diagram Reference: 11
Camshaft 3
Diagram Reference: 13
Camshaft 4
Diagram Reference: 15
Gear, driven 2
Diagram Reference: 17
Pulley assembly 1
Diagram Reference: 18
Bolt
Diagram Reference: 19
Gasket
Diagram Reference: 20
Bolt
Diagram Reference: 21
Bolt
Diagram Reference: 22
Oil Seal
Diagram Reference: 23
Belt
Diagram Reference: 24
Tensioner assembly
Diagram Reference: 25
Gear, idler 1
Diagram Reference: 26
Bolt, With Washer
Diagram Reference: 28
Washer, Plate
Diagram Reference: 29
