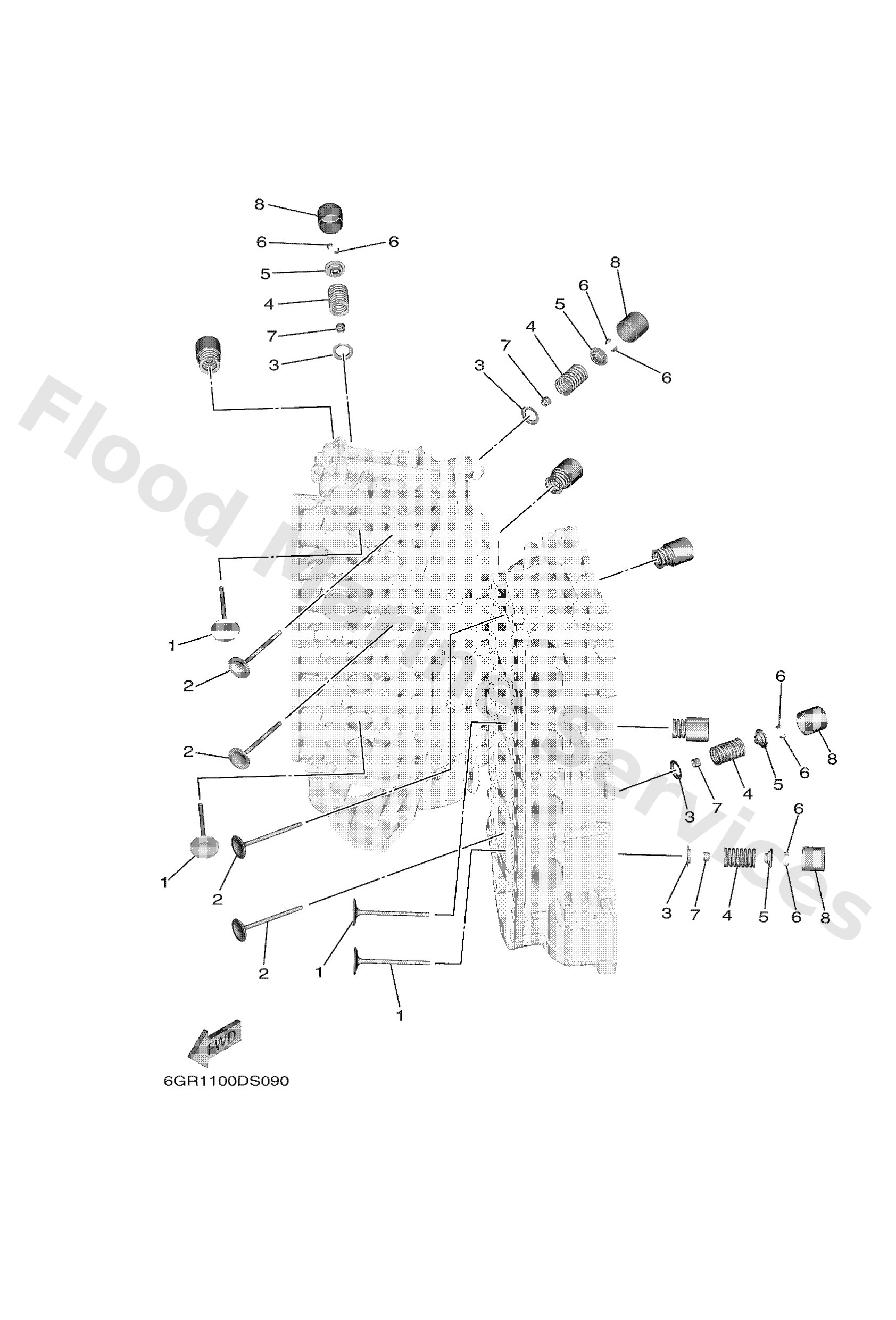

Diagram: VALVE 1

Diagram

Parts List

6GR1211100
Valve, intake
Diagram Reference: 1
Get Part
6DX1212100
Valve, exhaust
Diagram Reference: 2
Get Part
K0FA374300
Seat, valve spring
Diagram Reference: 3
Get Part
6CB1211300
Spring, valve inner
Diagram Reference: 4
Get Part
K0FA374100
Retainer, valve spring
Diagram Reference: 5
Get Part
K0FA374200
Lock, valve spring retainer
Diagram Reference: 6
Get Part
51Y1211900
Seal, valve stem
Diagram Reference: 7
Get Part
6GR1215360 (UR)
Lifter, valve (3.140)
Diagram Reference: 8
Get Part
6GR1215340 (UR)
Lifter, valve (3.100)
Diagram Reference: 8
Get Part
6GR1215330 (UR)
Lifter, valve (3.075)
Diagram Reference: 8
Get Part
6GR1215320 (UR)
Lifter, valve (3.050)
Diagram Reference: 8
Get Part
6GR1215310 (UR)
Lifter, valve (3.025)
Diagram Reference: 8
Get Part
6GR1215300 (UR)
Lifter, valve (3.000)
Diagram Reference: 8
Get Part
6GR1215350 (UR)
Lifter, valve (3.120)
Diagram Reference: 8
Get Part
6GR1215370 (UR)
Lifter, valve (3.160)
Diagram Reference: 8
Get Part
6GR1215380 (UR)
Lifter, valve (3.180)
Diagram Reference: 8
Get Part
6GR1215390 (UR)
Lifter, valve (3.200)
Diagram Reference: 8
Get Part
6GR12153A0 (UR)
Lifter, valve (3.220)
Diagram Reference: 8
Get Part
6GR12153B0 (UR)
Lifter, valve (3.240)
Diagram Reference: 8
Get Part
6GR12153C0 (UR)
Lifter, valve (3.260)
Diagram Reference: 8
Get Part
6GR12153D0 (UR)
Lifter, valve (3.280)
Diagram Reference: 8
Get Part
6GR12153E0 (UR)
Lifter, valve (3.300)
Diagram Reference: 8
Get Part
6GR12153F0 (UR)
Lifter, valve (3.320)
Diagram Reference: 8
Get Part
6GR12153G0 (UR)
Lifter, valve (3.340)
Diagram Reference: 8
Get Part
6GR12153H0 (UR)
Lifter, valve (3.360)
Diagram Reference: 8
Get Part
6GR12153J0 (UR)
Lifter, valve (3.380)
Diagram Reference: 8
Get Part
6GR12153K0 (UR)
Lifter, valve (3.400)
Diagram Reference: 8
Get Part
6GR1214560 (UR)
Lifter, valve (3.700)
Diagram Reference: 8
Get Part
6GR12153M0 (UR)
Lifter, valve (3.440)
Diagram Reference: 8
Get Part
6GR12153N0 (UR)
Lifter, valve (3.460)
Diagram Reference: 8
Get Part
6GR12153P0 (UR)
Lifter, valve (3.480)
Diagram Reference: 8
Get Part
6GR12153R0 (UR)
Lifter, valve (3.500)
Diagram Reference: 8
Get Part
6GR12153S0 (UR)
Lifter, valve (3.520)
Diagram Reference: 8
Get Part
6GR12153T0 (UR)
Lifter, valve (3.540)
Diagram Reference: 8
Get Part
6GR1214500 (UR)
Lifter, valve (3.560)
Diagram Reference: 8
Get Part
6GR1214510 (UR)
Lifter, valve (3.580)
Diagram Reference: 8
Get Part
6GR1214520 (UR)
Lifter, valve (3.600)
Diagram Reference: 8
Get Part
6GR1214530 (UR)
Lifter, valve (3.625)
Diagram Reference: 8
Get Part
6GR1214540 (UR)
Lifter, valve (3.650)
Diagram Reference: 8
Get Part
6GR1214550 (UR)
Lifter, valve (3.675)
Diagram Reference: 8
Get Part
6GR12153L0 (UR)
Lifter, valve (3.420)
Diagram Reference: 8
Get Part
