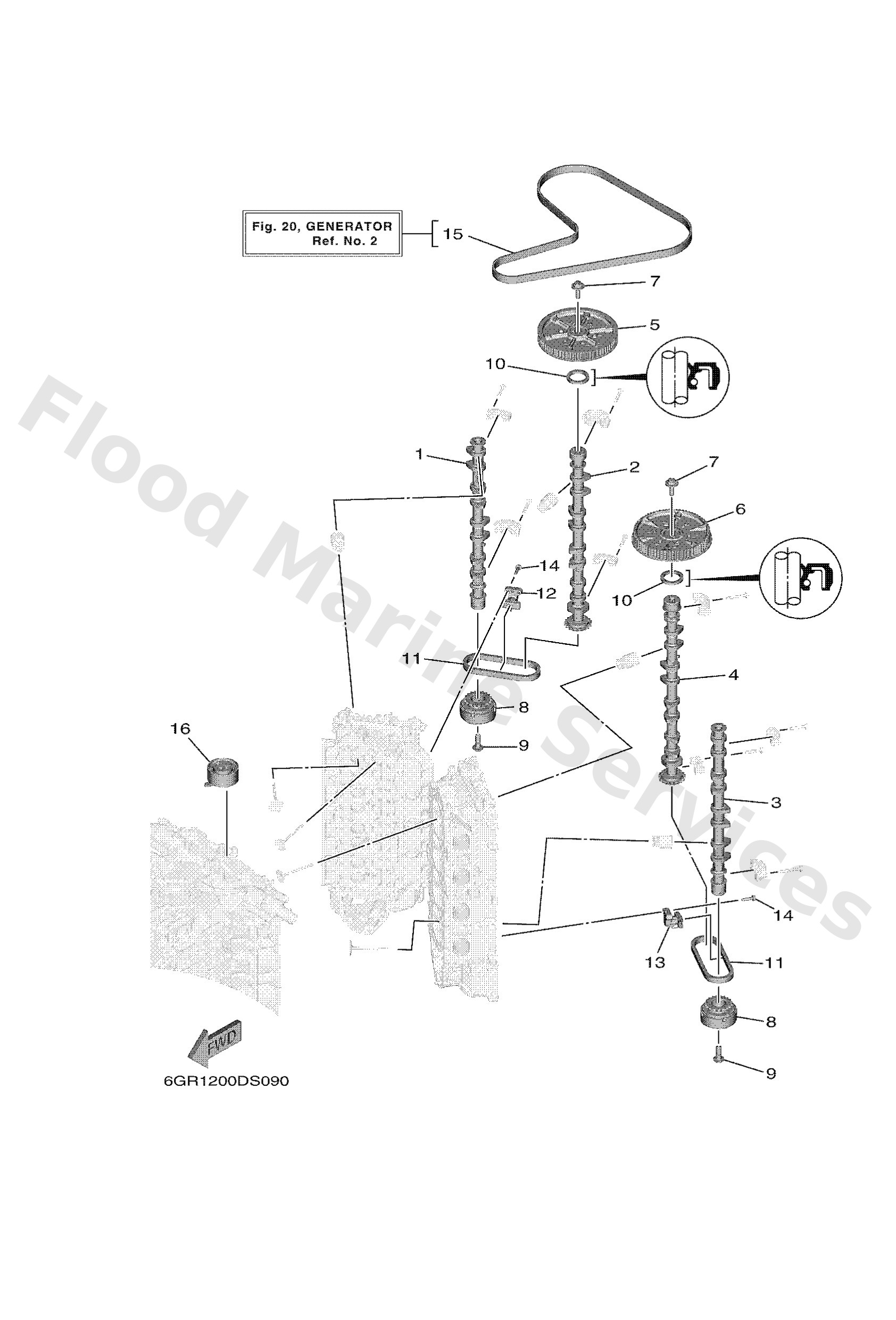

Diagram: VALVE 2

Diagram

Parts List

6GR1217100
Camshaft 1
Diagram Reference: 1
Get Part
6GR1218100
Camshaft 2
Diagram Reference: 2
Get Part
6GR1217200
Camshaft 3
Diagram Reference: 3
Get Part
6GR1218200
Camshaft 4
Diagram Reference: 4
Get Part
6GR115A000
Driven gear assembly
Diagram Reference: 5
Get Part
6GR1156700
Gear, driven 2
Diagram Reference: 6
Get Part
9011910050
Bolt, with washer
Diagram Reference: 7
Get Part
6GR1264500
Pulley assembly 1
Diagram Reference: 8
Get Part
9040112002
Bolt, union
Diagram Reference: 9
Get Part
9310238008
Oil seal
Diagram Reference: 10
Get Part
9458199044
Chain
Diagram Reference: 11
Get Part
6GR1221000
Tensioner assembly, cam chain
Diagram Reference: 12
Get Part
6GR1223000
Tensioner assembly, cam chain 2
Diagram Reference: 13
Get Part
9010506037
Bolt, flange
Diagram Reference: 14
Get Part
6GRW462400
Belt (with rotor bolts)
Diagram Reference: 15
Get Part
6P21159001
Tensioner assembly
Diagram Reference: 16
Get Part
