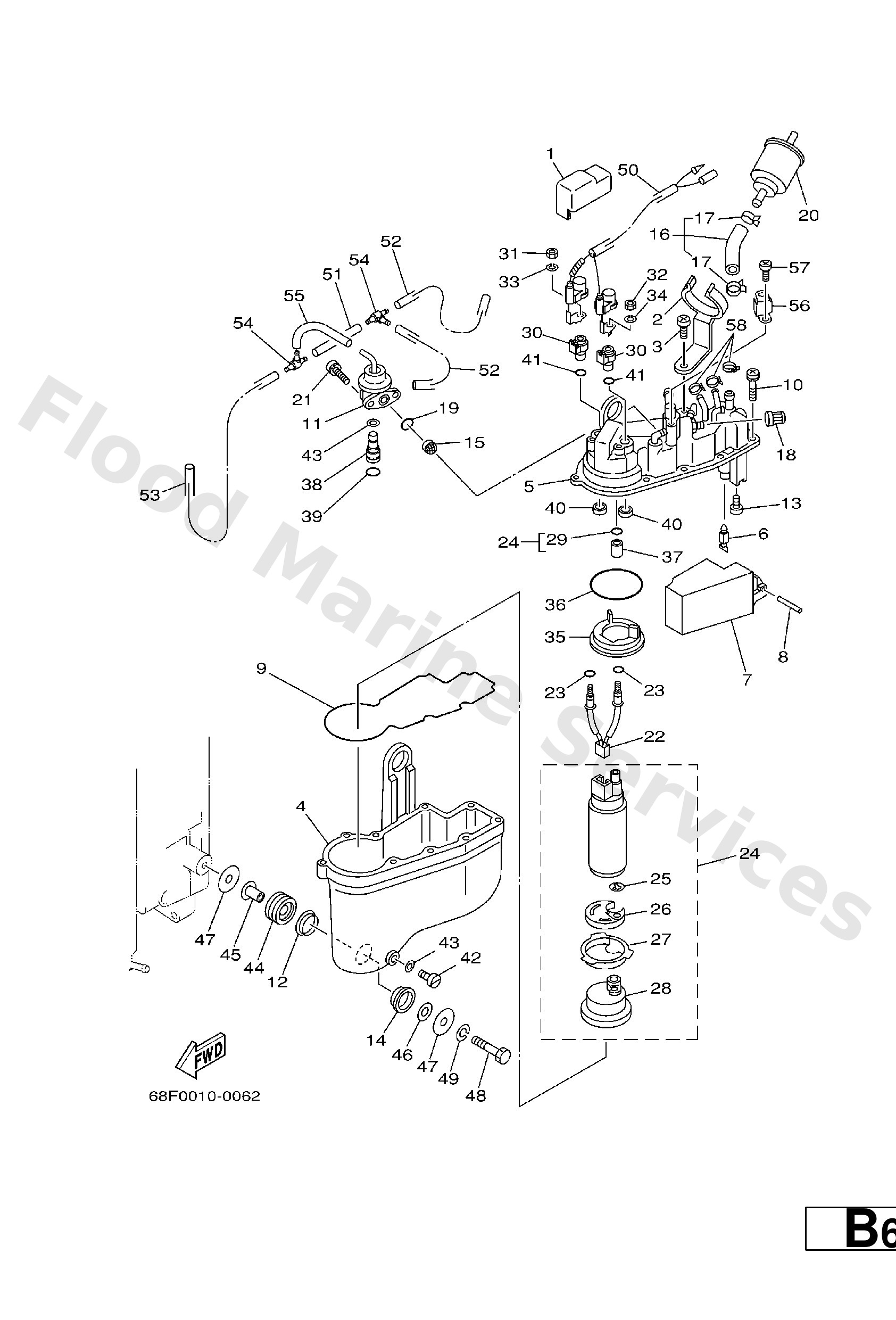

Diagram: VAPOR SEPARATOR 1
Parts List
Cover, pump
Diagram Reference: 1
Stay
Diagram Reference: 2
Screw
Diagram Reference: 3
Body, float chamber
Diagram Reference: 4
Cover, float chamber
Diagram Reference: 5
Valve, needle
Diagram Reference: 6
Float
Diagram Reference: 7
Pin, float arm
Diagram Reference: 8
Gasket, float chamber
Diagram Reference: 9
Screw
Diagram Reference: 10
Regulator, pressure
Diagram Reference: 11
Seal
Diagram Reference: 12
Screw, pan head
Diagram Reference: 13
Spacer
Diagram Reference: 14
Filter comp
Diagram Reference: 15
Pipe, fuel 1
Diagram Reference: 16
Clip
Diagram Reference: 17
Cap
Diagram Reference: 18
O-ring
Diagram Reference: 19
Strainer 1
Diagram Reference: 20
Screw, guide
Diagram Reference: 21
Wire, sub lead
Diagram Reference: 22
Washer
Diagram Reference: 23
Fuel pump comp.
Diagram Reference: 24
Clip
Diagram Reference: 25
Damper, pump
Diagram Reference: 26
Plate 2
Diagram Reference: 27
Filter
Diagram Reference: 28
O-ring
Diagram Reference: 29
Insulator
Diagram Reference: 30
Nut
Diagram Reference: 31
Nut
Diagram Reference: 32
Washer
Diagram Reference: 33
Washer
Diagram Reference: 34
Plate 1
Diagram Reference: 35
O-ring
Diagram Reference: 36
Connector
Diagram Reference: 37
Pipe, joint 1
Diagram Reference: 38
O-ring
Diagram Reference: 39
Insulator
Diagram Reference: 40
O-ring
Diagram Reference: 41
Screw, drain
Diagram Reference: 42
Seal
Diagram Reference: 43
Grommet
Diagram Reference: 44
Collar
Diagram Reference: 45
Washer
Diagram Reference: 46
Washer 2
Diagram Reference: 47
Bolt
Diagram Reference: 48
Washer, lock
Diagram Reference: 49
Wire, lead
Diagram Reference: 50
Hose, vacuum sensing 1
Diagram Reference: 51
Hose, Vacuum Sensing 2
Diagram Reference: 52
Hose, vacuum sensing 3
Diagram Reference: 53
Pipe.joint 4
Diagram Reference: 54
Hose, vacuum sensing 4
Diagram Reference: 55
Plate 4
Diagram Reference: 56
Screw
Diagram Reference: 57
Clamp
Diagram Reference: 58
