ME432STIP2 (2009)
WATER COOLER

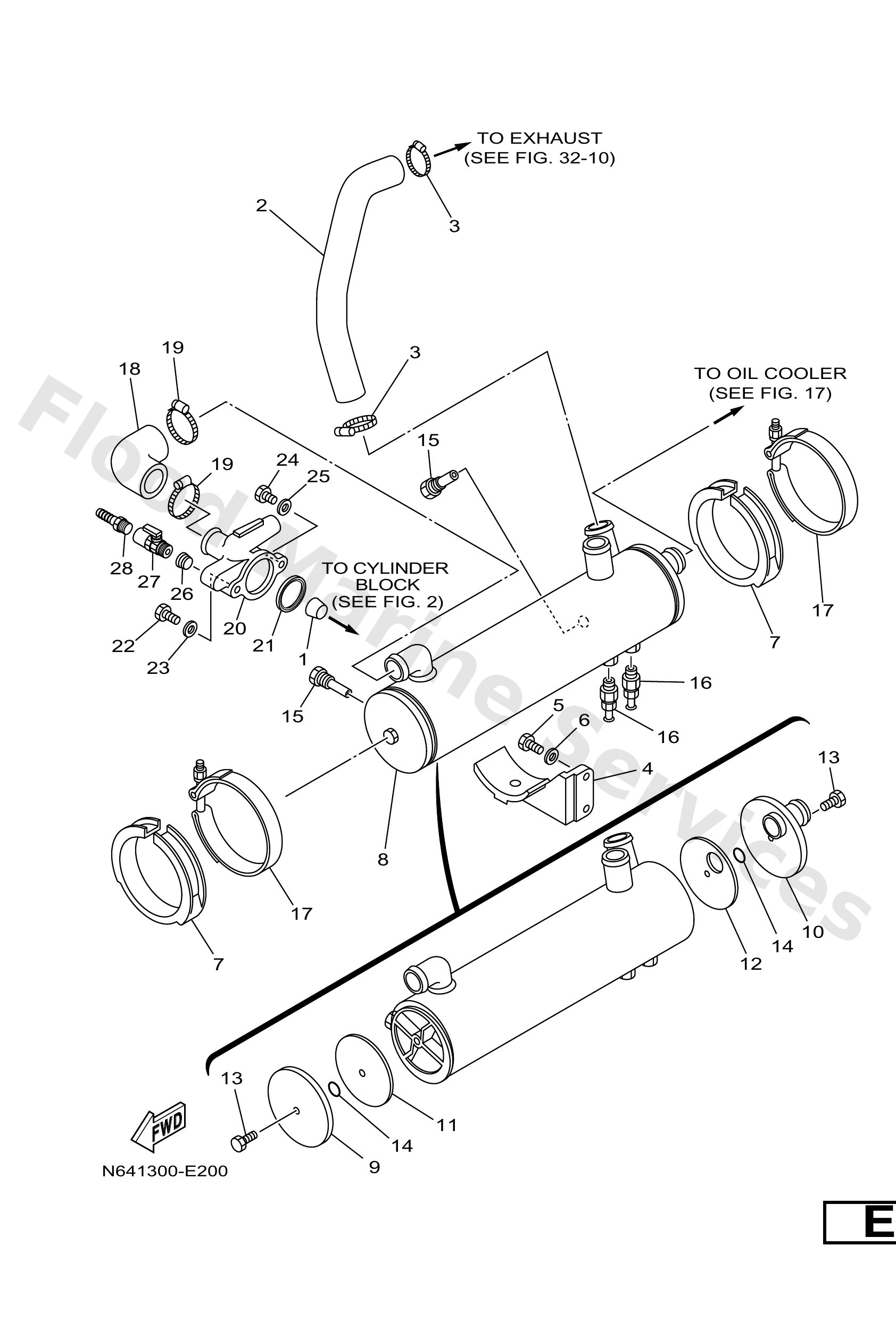

Diagram: WATER COOLER
Parts List
Reference
Description
Price
1
9033623M08
Plug, taper(6ta)
Loading…
↗
2
2
N64-83510-00
Loading…
↗
3
9045032008
Hose Clamp assembly
Loading…
↗
4
N571251800
Bracket, water coo
Loading…
↗
5
9702710025
Bolt(6td)
Loading…
↗
8
N641250000
Water cooler assembly
Loading…
↗
9
28
Yd9-00990-51-61 .Nut, Cap
Loading…
↗
10
N601246A00
Cover 1
Loading…
↗
11
N641251400
Gasket
Loading…
↗
13
17
97027-10025
Loading…
↗
14
22
-
Loading…
↗
15
6
-
Loading…
↗
16
15
-
Loading…
↗
17
13
-
Loading…
↗
18
N571243E00
Hose 2
Loading…
↗
19
3
-
Loading…
↗
19
24
6Ta-81855-00
Loading…
↗
20
N571244600
Joint
Loading…
↗
21
6TA1243401
Gasket
Loading…
↗
22
21
-
Loading…
↗
23
9290708600
Washer(6ta)
Loading…
↗
24
9702708025
Bolt, hexagon
Loading…
↗
26
9034453003
Plug, taper screw (716)
