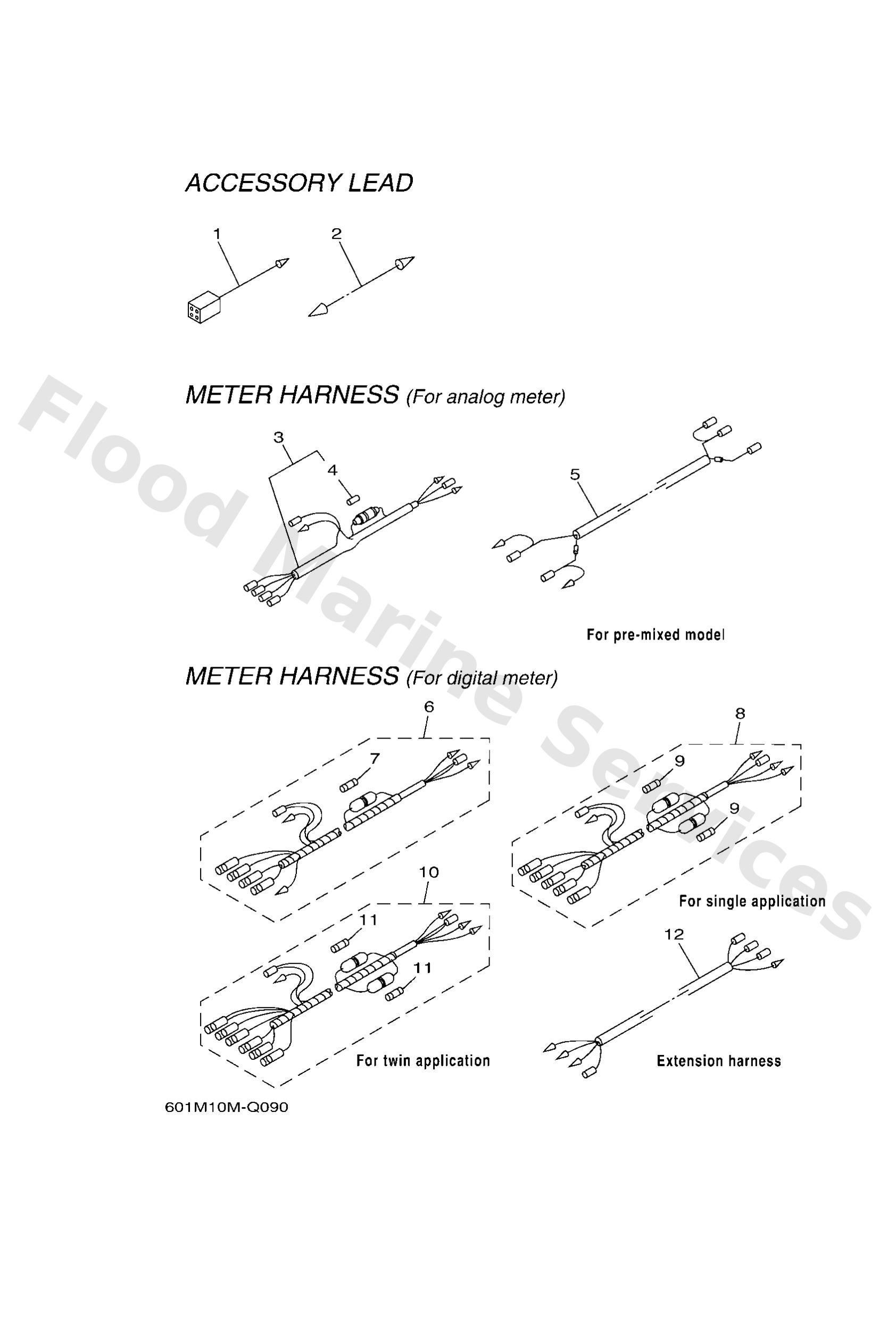

Diagram: WIRE HARNESS 1
Parts List
Wire, lead 3
Diagram Reference: 1
Wire, lead
Diagram Reference: 1
Wire, lead
Diagram Reference: 2
Wire, lead (l=2.5m)
Diagram Reference: 3
Fuse (10a)
Diagram Reference: 4
Wire, lead
Diagram Reference: 5
Wire, lead (l=2.5m)
Diagram Reference: 6
Wire, lead (l=2.5m)
Diagram Reference: 8
Wire, lead (l=2.5m)
Diagram Reference: 10
Wire, lead
Diagram Reference: 12
