Yamaha Outboard Parts - WIRE HARNESS 1 - Rigging - Remote Control (2016)

6888258650 ((7P))

Extension, wire harness

Diagram Reference: 1

6888258A50 (UR (10P))

10p main harness mec 5m (16ft)

Diagram Reference: 2

6K18258A40 (UR (10P))

Extension, wire harness

Diagram Reference: 2

61B8258A01 (UR (10P))

Extension, wire harness

Diagram Reference: 2

6888258A70 (UR (10P))

10p main harness mec 7m (23ft)

Diagram Reference: 2

6888258A60 (UR (10P))

10p main harness mec 6m (20ft)

Diagram Reference: 2

7038258A00 (7P TO 10P ADAPTER)

Extension, wire harness

Diagram Reference: 3

6888258631 (UR L)3M(7P))

Extension, wire harness

Diagram Reference: 4

6888258611 (UR L)2M(7P))

Extension, wire harness

Diagram Reference: 4

6888258A10 (UR (10P))

10p main harness mec 2m (7ft)

Diagram Reference: 5

6888258A30 (UR (10P))

10p main harness mec 3m (10ft)

Diagram Reference: 5

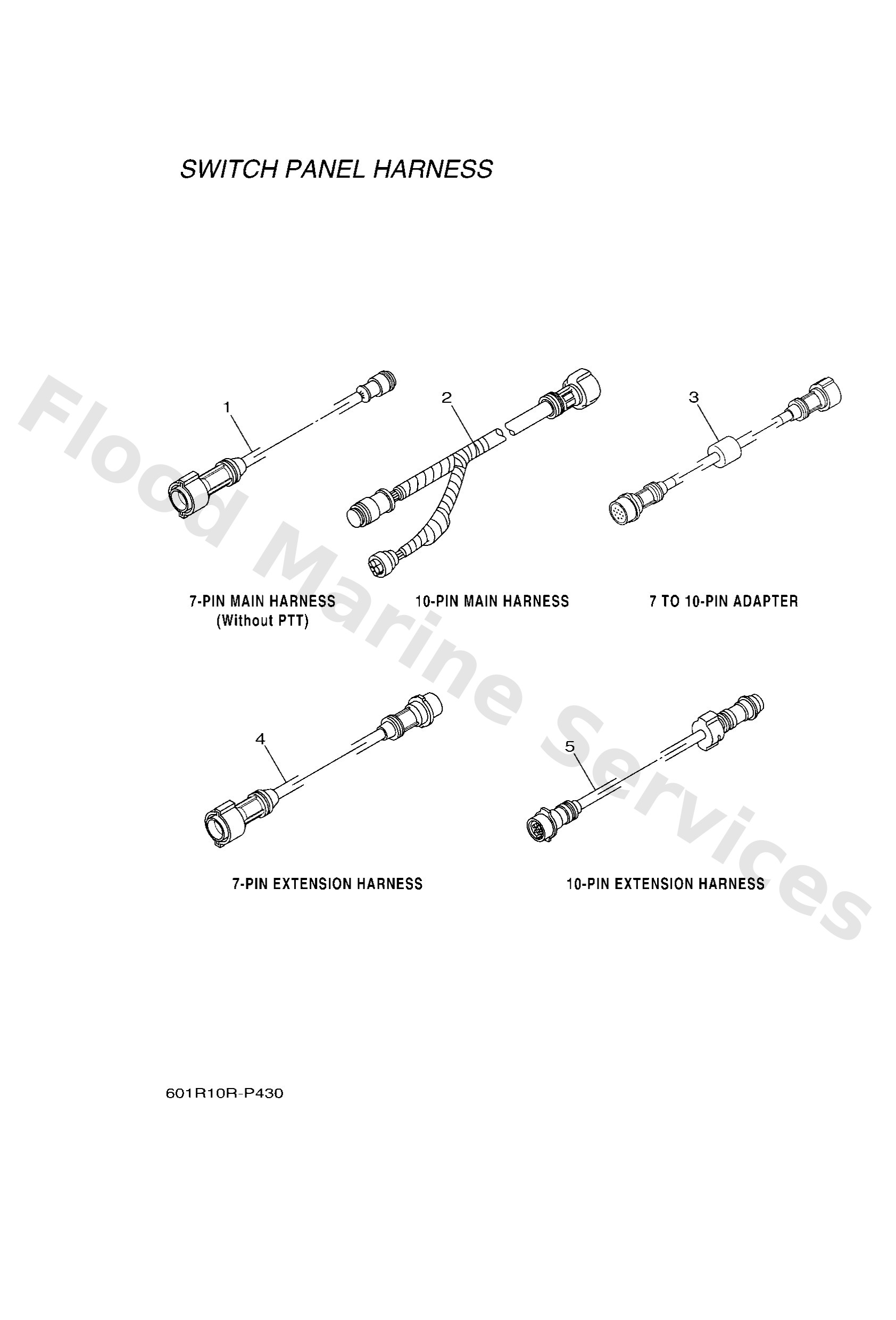

Diagram: WIRE HARNESS 1
