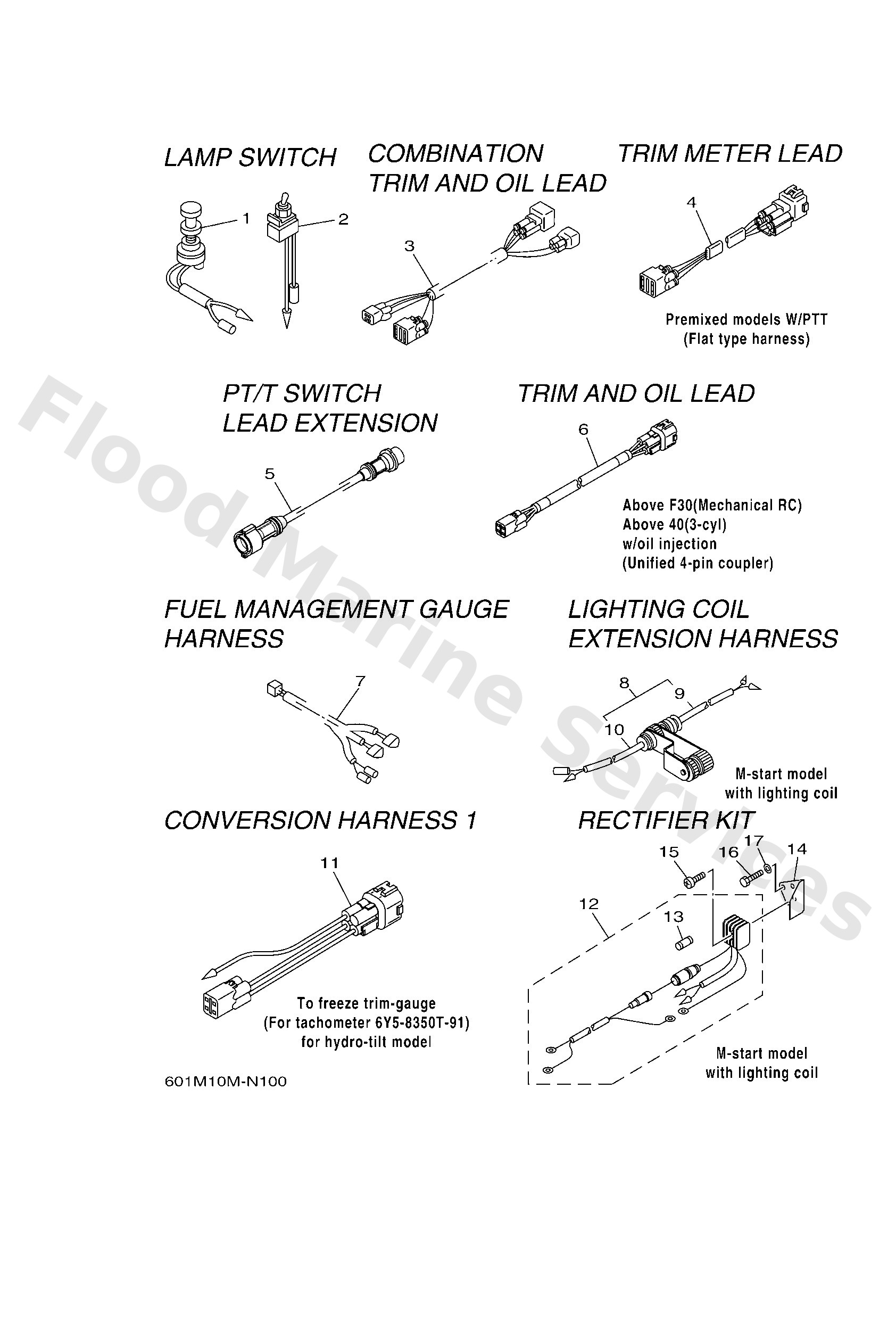

Parts List
Lamp switch assembly
Diagram Reference: 1
Switch, lamp
Diagram Reference: 2
Extension, wire lea (5m)
Diagram Reference: 3
Extension, wire lead (7m)
Diagram Reference: 3
Extension, wire lead (8m)
Diagram Reference: 3
Extension, wire lead (9m)
Diagram Reference: 3
Extension, Wire Lead (L=10.5M)
Diagram Reference: 3
Wire, lead
Diagram Reference: 4
Wire, lead
Diagram Reference: 4
Extension, wire lead (for trim
Diagram Reference: 4
Wire, lead
Diagram Reference: 4
Extension, wire lead (for trim
Diagram Reference: 4
Extension, wire harness
Diagram Reference: 5
Wire, lead
Diagram Reference: 6
Trim oil harness
Diagram Reference: 6
Wire, lead
Diagram Reference: 6
Wire, lead
Diagram Reference: 6
Wire, lead
Diagram Reference: 6
Wire, lead
Diagram Reference: 6
Wire, lead
Diagram Reference: 7
2p concent assembly
Diagram Reference: 8
2p concent 1
Diagram Reference: 9
2p concent 2
Diagram Reference: 10
Wire, Lead
Diagram Reference: 11
Rectifier assembly
Diagram Reference: 12
Fuse
Diagram Reference: 13
item_description
Diagram Reference: 14
Screw, panhead (a93)
Diagram Reference: 15
Bolt(63v)
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
