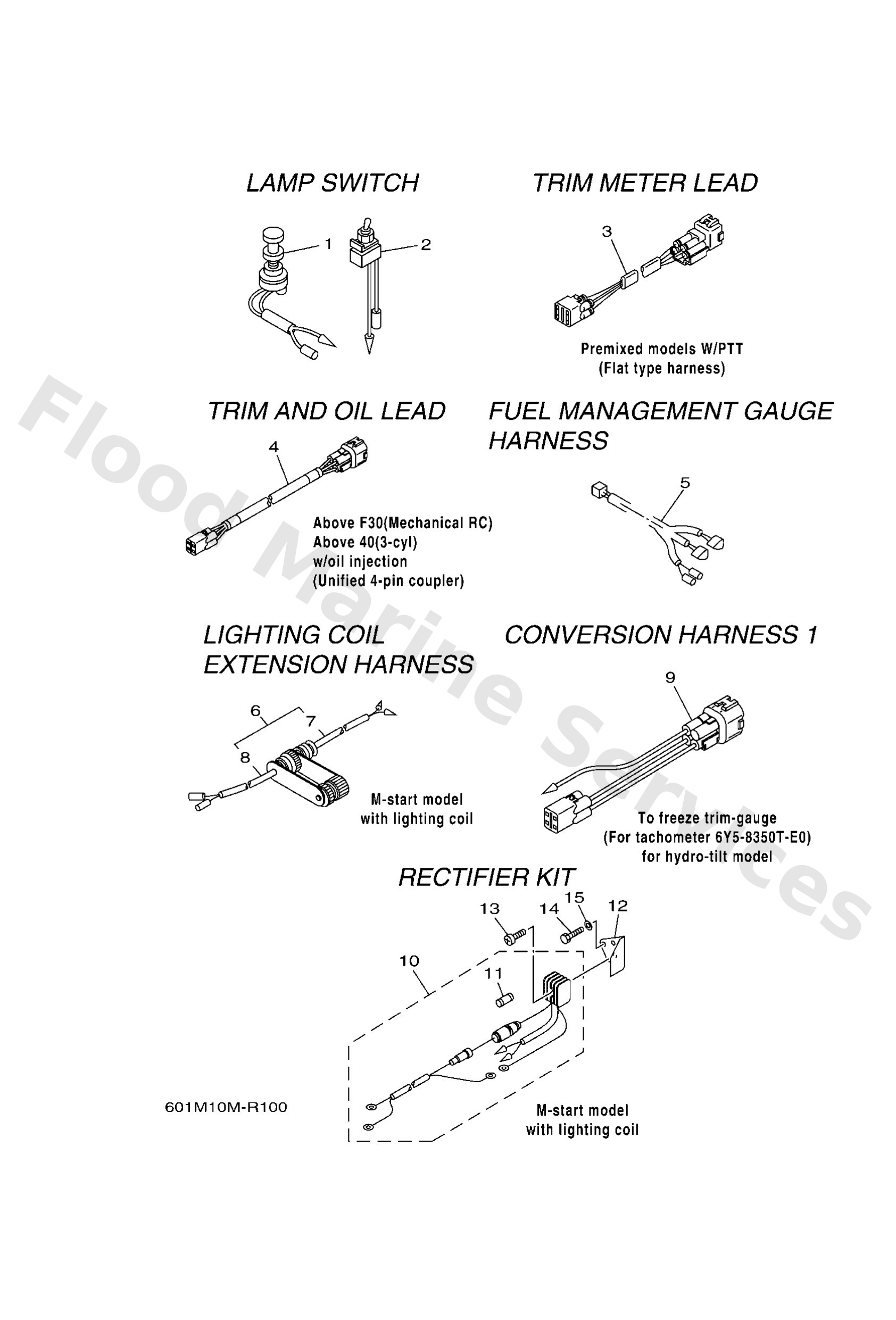

Diagram: WIRE HARNESS 2

Diagram

Parts List

6888252000
Lamp switch assembly
Diagram Reference: 1
Get Part
6888252600
Switch, lamp
Diagram Reference: 2
Get Part
6R38255390 (UR (4P))
Extension, wire lead (for trim
Diagram Reference: 3
Get Part
6R38255380 (UR (4P))
Wire, lead
Diagram Reference: 3
Get Part
6R38255370 (UR (4P))
Extension, wire lead (for trim
Diagram Reference: 3
Get Part
6R38255350 (UR (4P))
Wire, lead
Diagram Reference: 3
Get Part
6R38255330 (UR (4P))
Wire, lead
Diagram Reference: 3
Get Part
6Y58365350 (UR 4P,10.5M)
Trim oil harness
Diagram Reference: 4
Get Part
6Y58365340 (UR 4P,9M)
Wire, lead
Diagram Reference: 4
Get Part
6Y58365330 (UR 4P,8M)
Wire, lead
Diagram Reference: 4
Get Part
6Y58365320 (UR 4P,7M)
Wire, lead
Diagram Reference: 4
Get Part
6Y58365310 (UR 4P,6M)
Wire, lead
Diagram Reference: 4
Get Part
6Y58365300 (UR 4P,5M)
Wire, lead
Diagram Reference: 4
Get Part
6Y583553F1
Wire, lead
Diagram Reference: 5
Get Part
6828438000
2p concent assembly
Diagram Reference: 6
Get Part
6828438100
2p concent 1
Diagram Reference: 7
Get Part
6828438200
2p concent 2
Diagram Reference: 8
Get Part
6Y58350U10
Wire, Lead
Diagram Reference: 9
Get Part
6768197001
Rectifier assembly
Diagram Reference: 10
Get Part
6638215100
Fuse
Diagram Reference: 11
Get Part
* (LM)
item_description
Diagram Reference: 12
Get Part
9788005025
Screw, panhead (a93)
Diagram Reference: 13
Get Part
9701306010
Bolt(63v)
Diagram Reference: 14
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 15
