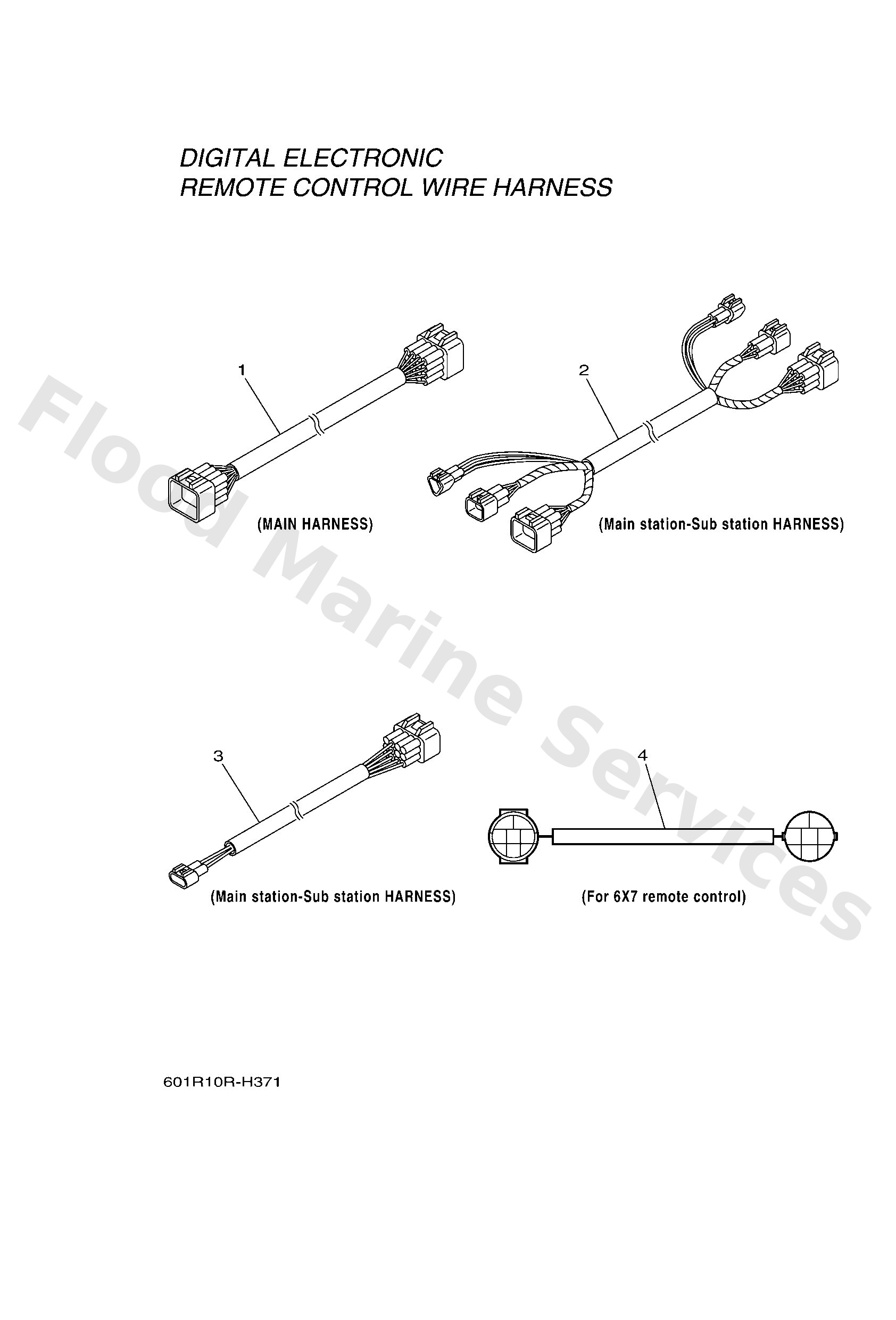

Diagram: WIRE HARNESS 2

Diagram

Parts List

6X68258A00 (UR)
Extension, wire harness(6.1m)
Diagram Reference: 1
Get Part
6X68258A10 (UR)
16p dbw main harness 7m-23ft
Diagram Reference: 1
Get Part
6X68258A20 (UR)
16p dbw main harness 8m-26ft
Diagram Reference: 1
Get Part
6X68258A30 (UR)
16p dbw main harness 10m-32ft
Diagram Reference: 1
Get Part
6X68258A40 (UR)
16p dbw main harness 12m-38ft
Diagram Reference: 1
Get Part
6X68258AA1 (UR 2 STATION)
Extension, Wire Harness (5M)
Diagram Reference: 2
Get Part
6X68258AC1 (UR 2 STATION)
Extension, Wire Harness (8M)
Diagram Reference: 2
Get Part
6X68258AE1 (UR 2 STATION)
Extension, Wire Harness) 12.2M
Diagram Reference: 2
Get Part
6X68258AB1 (UR 2 STATION)
#xtension, wire harness
Diagram Reference: 3
Get Part
6X68258AD1 (UR 2 STATION)
Extension, wire harness
Diagram Reference: 3
Get Part
6X68258AF1 (UR 2 STATION)
Extension, wire harness
Diagram Reference: 3
Get Part
6X78259030 (FOR 6X7 RC)
Wire harness assembly
Diagram Reference: 4
Get Part
