Parts List
Extension, wire harness(6.1m)

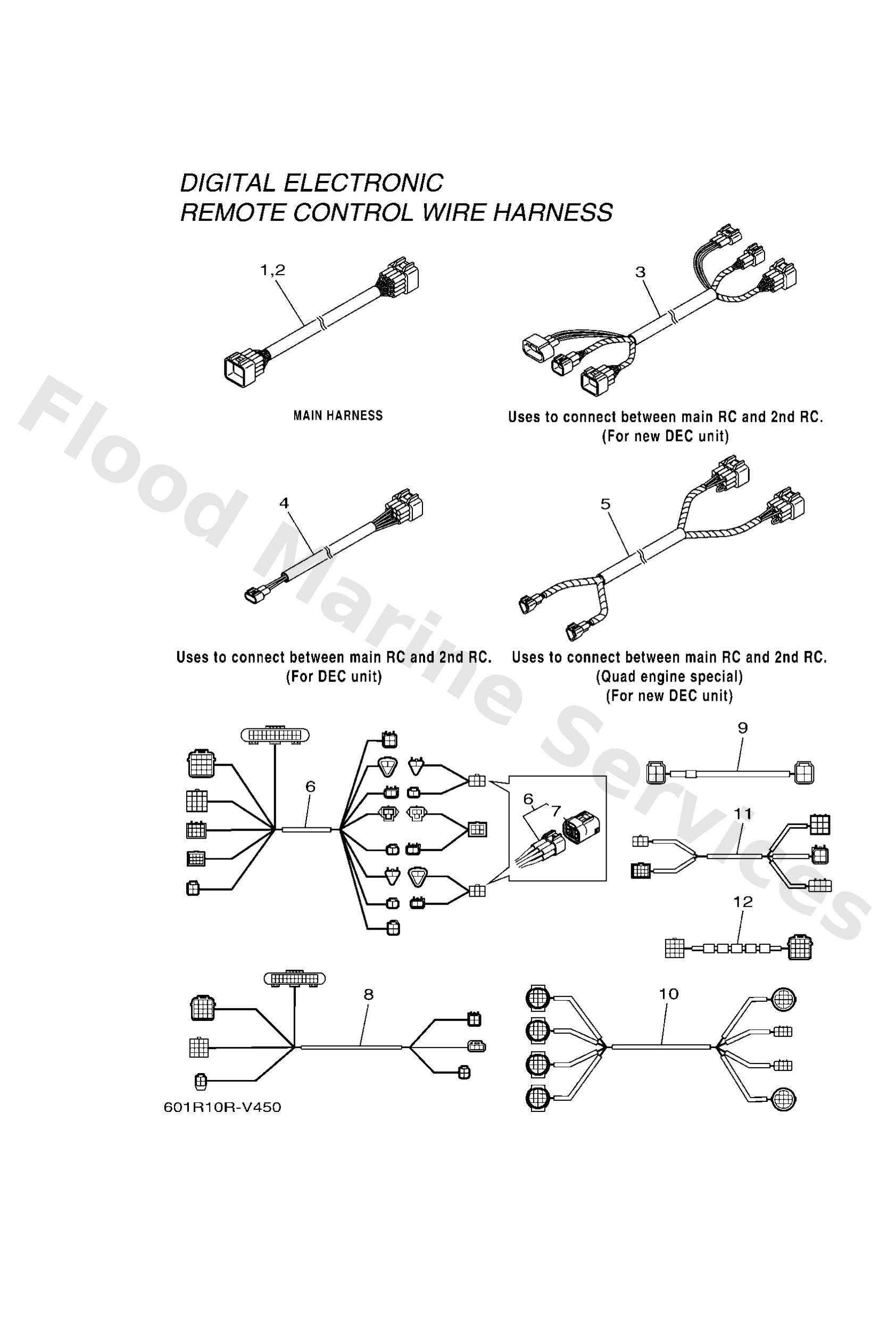

Diagram Reference: 1
16p dbw main harness 12m-38ft
Diagram Reference: 1
16p dbw main harness 10m-32ft
Diagram Reference: 1
16p dbw main harness 8m-26ft
Diagram Reference: 1
16p dbw main harness 7m-23ft
Diagram Reference: 1
Extension, wire harness (3.7m)
Diagram Reference: 2
Extension, wire harness (5.2m)
Diagram Reference: 2
16p dbw main harness 24m-79ft
Diagram Reference: 2
16p dbw main harness 15m-49ft
Diagram Reference: 2
Extension, wire harness (5m)
Diagram Reference: 3
Extension, wire harness (12.2m
Diagram Reference: 3
Extension, wire harness (8m)
Diagram Reference: 3
#xtension, wire harness
Diagram Reference: 4
Extension, wire harness
Diagram Reference: 4
Extension, wire harness
Diagram Reference: 4
Extension, wire harness (5m)
Diagram Reference: 5
Extension, wire harness: 12.2m
Diagram Reference: 5
Extension, wire harness (8m)
Diagram Reference: 5
2nd st harness (p) 5m-16ft
Diagram Reference: 6
2nd st harness (p) 8m-26ft
Diagram Reference: 6
2nd st harness (p) 12m-38ft
Diagram Reference: 6
End of line resister
Diagram Reference: 7
2nd st harness (s) 5m-16ft
Diagram Reference: 8
2nd st harness (s) 8m-26ft
Diagram Reference: 8
2nd st harness (s) 12m-38ft
Diagram Reference: 8
2nd st harness (c) 5m-16ft
Diagram Reference: 9
2nd st harness (c) 8m-26ft
Diagram Reference: 9
2nd st harness (c) 12m-38ft
Diagram Reference: 9
Wire, lead
Diagram Reference: 10
Wire, lead
Diagram Reference: 11
Ext harness 6x6/6x9 2nd st xto
Diagram Reference: 12
