Diagram Sections: 130BETOL (2000)

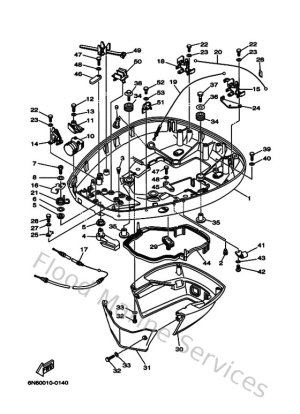

Diagram for Bottom Cowling

Diagram for Bracket 1

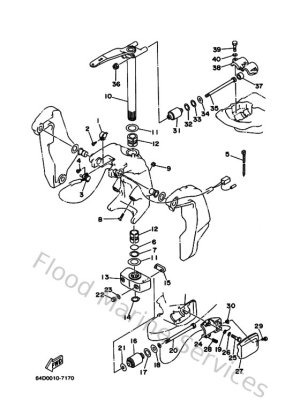

Diagram for Bracket 2

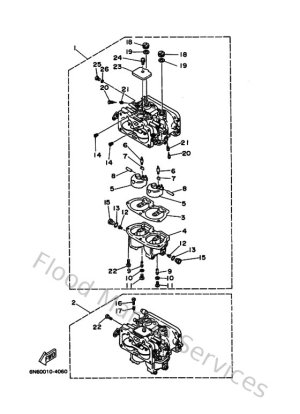

Diagram for Carburetor

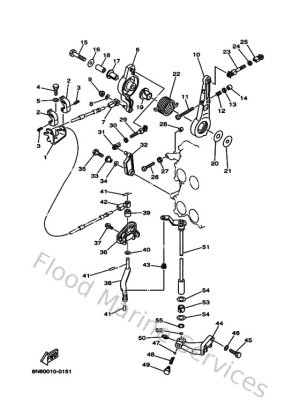

Diagram for Control

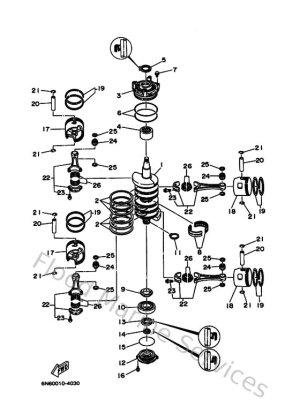

Diagram for Crankshaft &amp; Piston

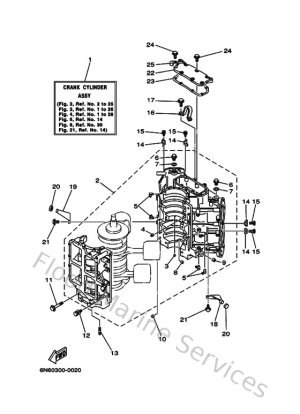

Diagram for Cylinder &amp; Crankcase

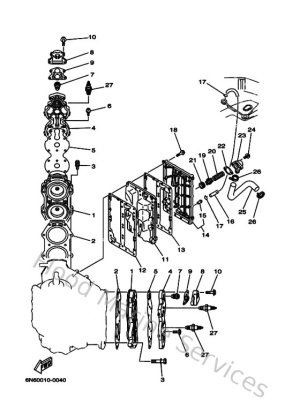

Diagram for Cylinder &amp; Crankcase 2

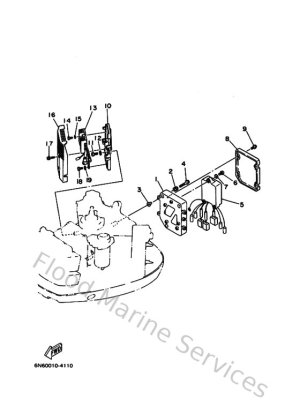

Diagram for Electrical 1

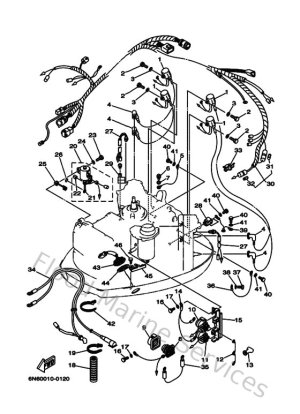

Diagram for Electrical 2

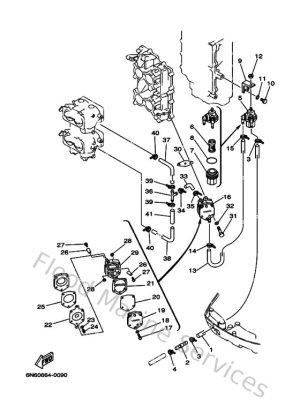

Diagram for Fuel

Diagram for Fuel 2

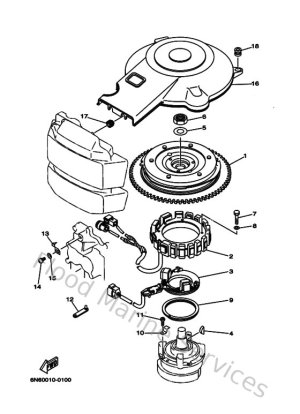

Diagram for Generator

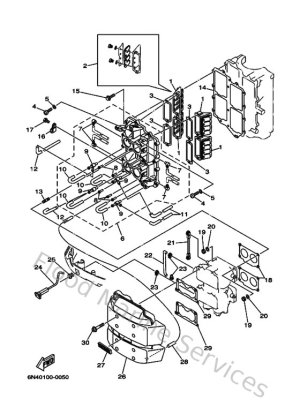

Diagram for Intake

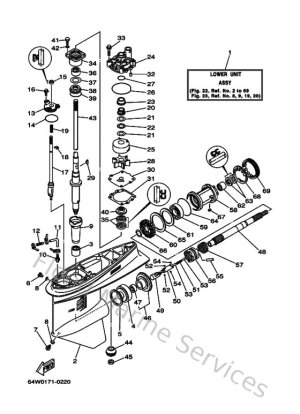

Diagram for Lower Casing &amp; Drive 1

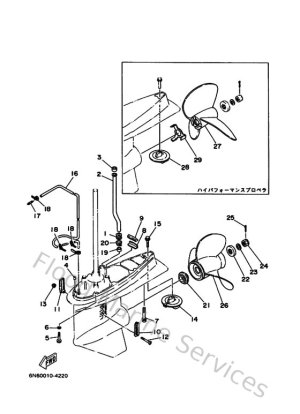

Diagram for Lower Casing &amp; Drive 2

Diagram for Meter

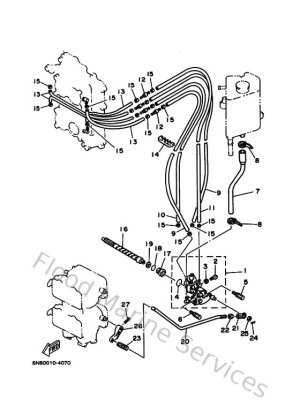

Diagram for Oil Pump

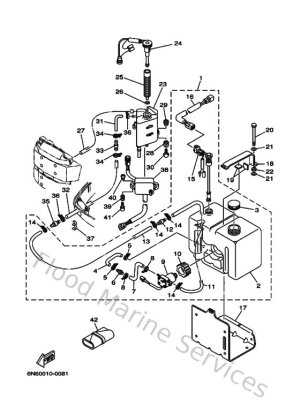

Diagram for Oil Tank

Diagram for Power Trim &amp; Tilt Assy 1

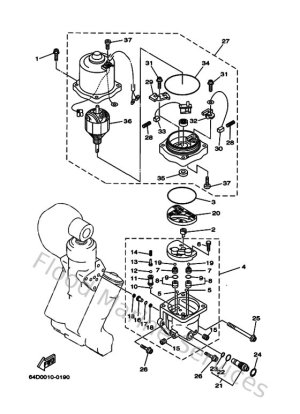

Diagram for Power Trim &amp; Tilt Assy 2

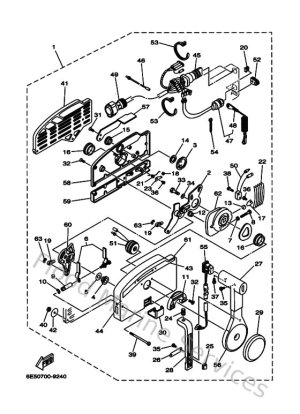

Diagram for Remote Control Assy 1

Diagram for Remote Control Box

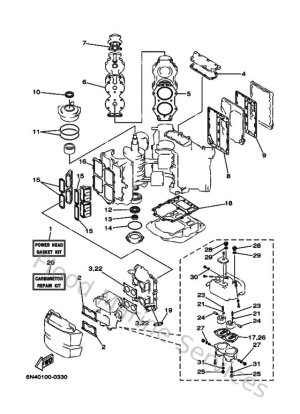

Diagram for Repair Kit 1

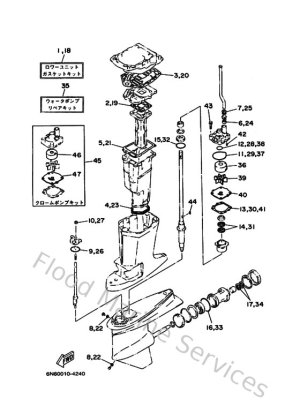

Diagram for Repair Kit 2

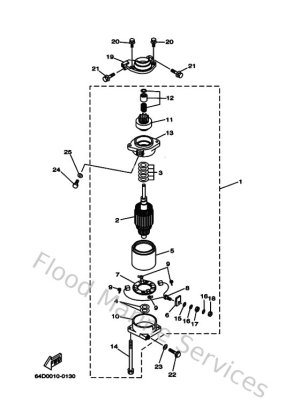

Diagram for Starting Motor

Diagram for Steering Guide

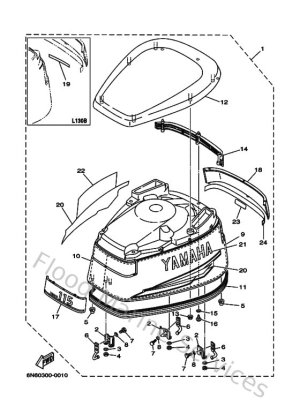

Diagram for Top Cowling

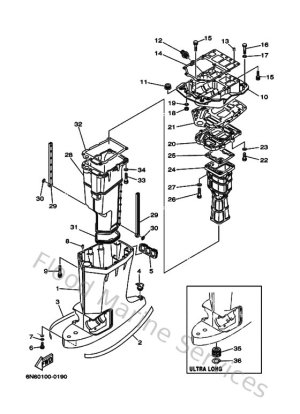

Diagram for Upper Casing
