Yamaha Outboard Parts - Alternate 3 - 30DMHO (1988) | Flood Marine

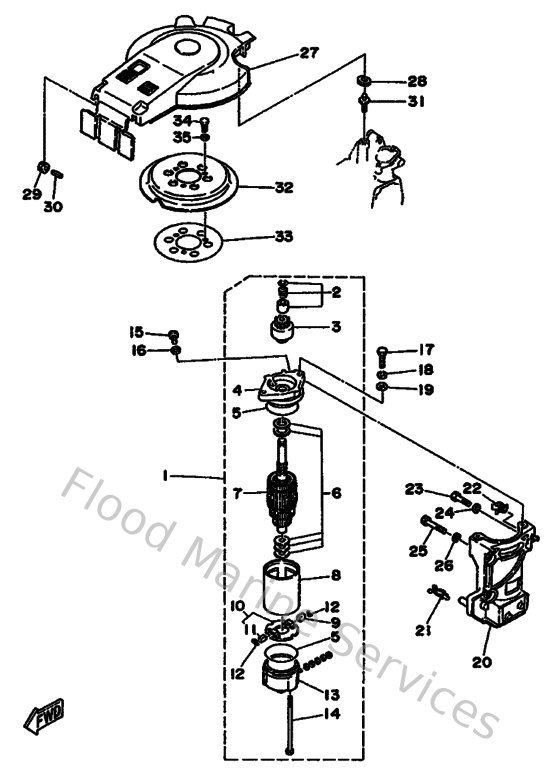

Diagram: Alternate 3

Diagram

Parts List

Reference
Description
Price


1
6F5818001000
Starting motor assembly
Loading…

↗
2
689818571100
Pinion stopper set
Loading…

↗
3
689818071200
Pinion assembly
Loading…

↗
4
6F5818301100
Front cover assembly
Loading…

↗
5
689818471100
O-ring
Loading…

↗
6
689818091100
Washer kit
Loading…

↗
7
689818501100
Armature assembly
Loading…

↗
8
689818101100
Stator ass'y
Loading…

↗
9
689818111100
Brush 1
Loading…

↗
10
689818401100
Brush holder assembly
Loading…

↗
11
689818121100
Brush 2
Loading…

↗
12
689818131000
Spring, brush
Loading…

↗
13
689818201100
Rear cover ass'y
Loading…

↗
14
689818261000
Bolt
Loading…

↗
15
973130801600
Bolt, hexagon
Loading…

↗
16
929900860000
Washer, plain (663)
Loading…

↗
17
973130803000
Bolt
Loading…

↗
18
929900810000
Ybs67-8 washer, spring
Loading…

↗
20
6J8818220094
Bracket, starting motor
Loading…

↗
21
9046412M0900
Clamp(6h4)
Loading…

↗
22
9046403M1500
Clamp(6j8)
Loading…

↗
23
970130803500
Bolt
Loading…

↗
25
973130805500
Bolt, hexagon
Loading…

↗
27
6J8813371000
Cover, flywheel
Loading…

↗
28
9048014M1700
Grommet(6j8)
Loading…

↗
29
9048010M1600
Grommet(6j8)
Loading…

↗
30
916905002200
Pin, spring (676)
Loading…

↗
31
6J8813380000
Clamp, lead
Loading…

↗
32
6J8157230100
Pulley, starter
Loading…

↗
33
6J8813650000
Gasket, hole cover
Loading…

↗
34
973210801400
Bolt, hexagon
Loading…

↗
