F45A (1996)
Boitier Dhelice, Transmissio (F50B)

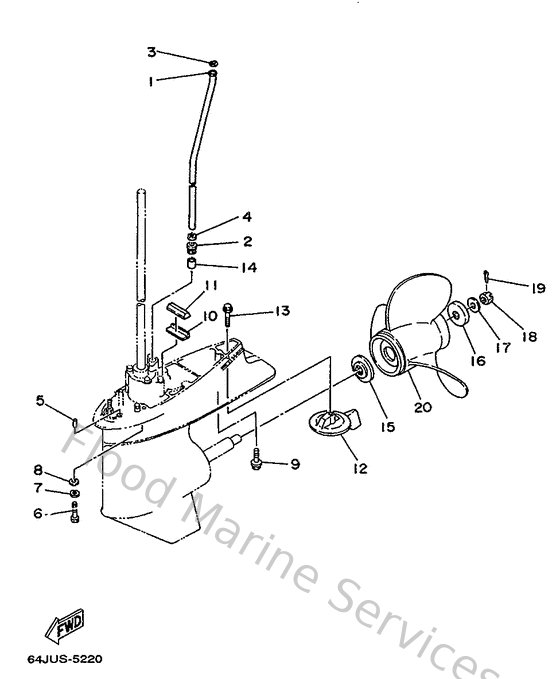

Diagram: Boitier Dhelice, Transmissio (F50B)
Parts List
Reference
Description
Price
1
62Y443610000
Tube, water
Loading…
↗
2
663443670000
Damper, water seal 3
Loading…
↗
3
902021206000
Washer, plate(663)
Loading…
↗
4
904301207200
Gasket
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
9011908M8400
Bolt, with washer
Loading…
↗
10
663453760000
Guide, seal damper
Loading…
↗
11
688453750000
Damper, seal 2
Loading…
↗
12
688453710200
Tab-trim
Loading…
↗
13
9010510M6700
Bolt, hexagon (663)
Loading…
↗
14
663443660000
Damper, water seal 2
Loading…
↗
15
688459870200
Spacer
Loading…
↗
16
688459970100
Spacer 2
Loading…
↗
17
9020117M0000
Washer, plate(6h1)
Loading…
↗
18
901711601100
Nut, castle (663)
Loading…
↗
19
914904003000
Pin, cotter (663)
Loading…
↗
20
6E5459450100
Propeller (3x13-1/4x17-k)
Loading…
↗
1
64J45300104D
Lower Unit Assembly (Ref. No. 2~65)
Loading…
↗
2
6H145301124D
Lower casing set
Loading…
↗
3
93315325V100
Bearing, needle (688)
Loading…
↗
4
688455360100
Sleeve, drive shaft
Loading…
↗
5
688455870130
Shim (t:0.30mm)
Loading…
↗
6
93332000U300
Brg,tapered roller 50mm (688)
Loading…
↗
7
688455676000
Shim (t:0.50mm)
Loading…
↗
8
93332000W700
Bearing(6b0)
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
688453410000
Plug, drain
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
688452140200
Cover, water inlet
Loading…
↗
13
688452150200
Cover, water inlet
Loading…
↗
14
987800554500
Screw, countersunk(692)
Loading…
↗
15
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
16
688453210000
Plate
Loading…
↗
17
932104904600
O-ring (620)
Loading…
↗
18
931060901400
Oil seal
Loading…
↗
19
970950601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
6E5453780000
Nipple, hose
Loading…
↗
22
9044507M3100
Hose (l200)
Loading…
↗
23
6E5835581000
End, nipple
Loading…
↗
24
9046511M1000
Clamp
Loading…
↗
25
6H3443110000
Housing, water pump 1
Loading…
↗
26
663443220000
Insert, cartridge
Loading…
↗
27
6H344315A000
Gasket,water pump 1
Loading…
↗
28
6H3443520000
Impellar
Loading…
↗
29
9028003M0300
Key, woodruff (697)
Loading…
↗
30
6H3443410094
Housing, water pump set
Loading…
↗
31
931012307000
Oil seal (663)
Loading…
↗
32
932104604400
O-ring
Loading…
↗
33
68844316A000
Gasket,water pump 2
Loading…
↗
34
6H3443230000
Outer plate, cartridge
Loading…
↗
35
6H344324A000
Gasket,cartridge 0ut,plate
Loading…
↗
36
9360410M0300
Pin, dowel (688)
Loading…
↗
37
970950805500
Bolt, hexagon
Loading…
↗
38
970800804500
Bolt, hexagon
Loading…
↗
39
9020908M0200
Washer, plate (688)
Loading…
↗
40
64J455011000
Drive Shaft Comp
Loading…
↗
41
6K5455510000
Pinion
Loading…
↗
42
9017016M0100
Nut, hexagon (688)
Loading…
↗
43
6K5455600000
Gear
Loading…
↗
44
688456110000
Shaft, propeller
Loading…
↗
45
688456310100
Clutch, dog
Loading…
↗
46
688456340000
Slide, shift
Loading…
↗
47
905011623300
Spring compression(663)
Loading…
↗
48
688456350000
Plunger, shift
Loading…
↗
49
9025007M0200
Pin, straight (688)
Loading…
↗
50
688456330000
Ping, cross pin
Loading…
↗
51
663441510000
Cam, shift
Loading…
↗
52
6K5441440000
Rod, shift
Loading…
↗
53
932100754000
O-ring (11m)
Loading…
↗
54
990010860000
Circlip(2r6)
Loading…
↗
55
6K5455710000
Gear
Loading…
↗
56
6884533100CA
Housing, bearing
Loading…
↗
57
93306207U000
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
58
688455770150
Shim (t:0.50mm)
Loading…
↗
59
688455760000
Washer, thrust 2
Loading…
↗
60
9321085M9700
O-ring(6h1)
Loading…
↗
61
93317325U000
Brg,needle
Loading…
↗
62
9310125M0300
Oil seal
Loading…
↗
63
902820401000
Key, strait(663)
Loading…
↗
64
688453830200
Washer, claw
Loading…
↗
65
688453840000
Nut
