60FETO (1993)
Bottom Cowling

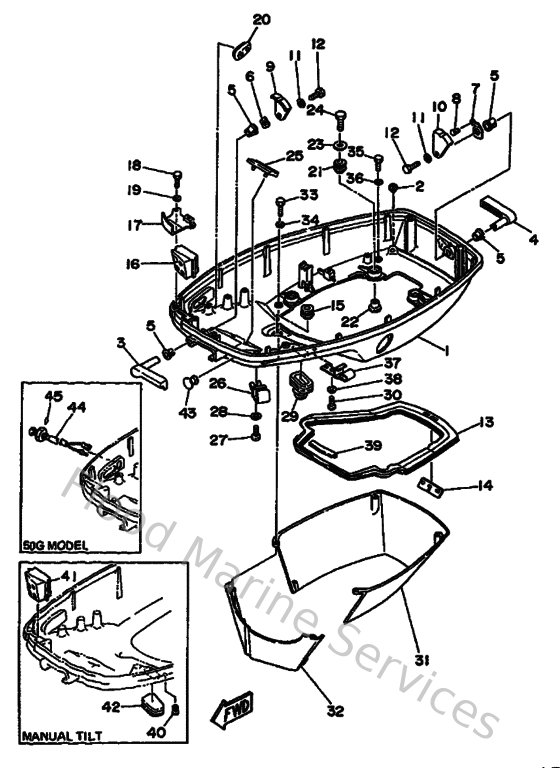

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H3443910100
Nipple, hose
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
6H3428130000
Spring, clamp lever
Loading…
↗
8
9026904M0300
Rivet (6h3)
Loading…
↗
9
6H3428160000
Lever, clamp 2
Loading…
↗
10
6H3428180000
Lever, clamp 4
Loading…
↗
11
9020106M0200
Washer,plate (6k8)
Loading…
↗
12
970130601200
Bolt(gh1)
Loading…
↗
13
6H3427160200
Rubber, seal 1
Loading…
↗
14
6K5427170000
Rubber, seal 2
Loading…
↗
15
6E5427240000
Grommet
Loading…
↗
16
6H3427251000
Grommet
Loading…
↗
17
6H342738005B
Plate, fitting
Loading…
↗
18
970950601600
Bolt, hexagon deep recess
Loading…
↗
19
929950660000
Washer, plain (646)
Loading…
↗
20
6H3427270000
Grommet
Loading…
↗
21
9048009M1200
Grommet (6a0)
Loading…
↗
22
9038706M6900
Collar (688)
Loading…
↗
23
902010641600
Washer, plate(663)
Loading…
↗
24
973130603000
Bolt
Loading…
↗
25
6H3427680000
Damper
Loading…
↗
27
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
28
929900660000
Washer, plain (646)
Loading…
↗
29
6H1427261000
Grommet
Loading…
↗
30
9015706M0100
Screw (6e5)
Loading…
↗
33
973950602500
Bolt
Loading…
↗
35
970800602000
Bolt(7u8)
Loading…
↗
39
6H3427180000
Rubber, seal 3
Loading…
↗
40
9033805M0300
Plug (6h1)
Loading…
↗
41
6H3427250000
Grommet
Loading…
↗
42
6H4427260000
Grommet
Loading…
↗
43
6G1427480000
Grommet
Loading…
↗
44
6J8854100000
Emergency signal light assembly
Loading…
↗
45
6H4854151000
Mark, signal lamp
Loading…
↗
