8CMH (1998)
Bottom Cowling

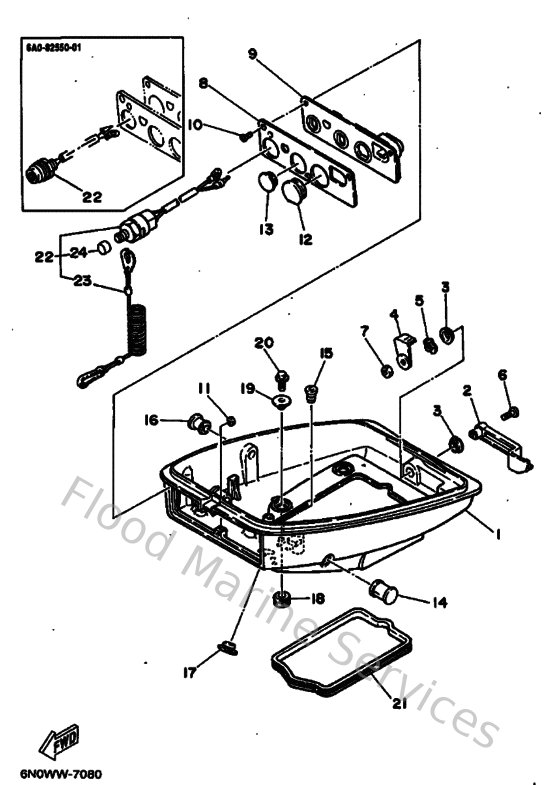

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6N0G2711004D
Cowling, bottom 1
Loading…
↗
2
6N0G2815004D
Lever clamp
Loading…
↗
3
9038612M4500
Bushing (6g1)
Loading…
↗
4
6E0428160000
Lever, clamp
Loading…
↗
5
902061205200
Washer, wave (666)
Loading…
↗
6
978850603000
Screw, pan head(6e0)
Loading…
↗
7
953800670000
Nut
Loading…
↗
8
6N0G27198000
Pannel front lower
Loading…
↗
9
6N0G27670000
Bracket 3
Loading…
↗
10
9014905M0200
Screw (6g1)
Loading…
↗
11
953800570000
Nut (656)
Loading…
↗
12
6G1427240000
Grommet
Loading…
↗
13
6G1427250000
Grommet
Loading…
↗
14
6G1427260000
Grommet 3
Loading…
↗
15
6G1427270000
Grommet
Loading…
↗
16
6G1427480000
Grommet
Loading…
↗
17
6G1263260000
Grommet
Loading…
↗
18
9048015M3100
Grommet (6g1)
Loading…
↗
19
9038706M5200
Collar (6g1)
Loading…
↗
20
958950602000
Bolt, flange(jk3)
Loading…
↗
21
6N0G27160000
Rubber, seal 1
Loading…
↗
22
6E9825750200
Engine stop switch assembly
Loading…
↗
23
682825560000
Lanyard, stop switch
Loading…
↗
24
6898257Y0000
Cap
Loading…
↗
