25BMH (2001)
Bracket 1

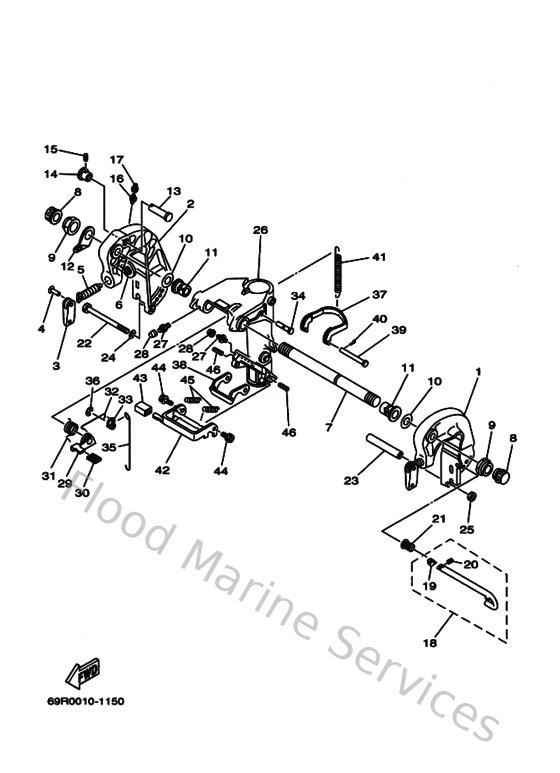

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
68943111034D
Bracket, clamp 1
Loading…
↗
2
68943112024D
Bracket, clamp 2
Loading…
↗
3
6E0431180100
Handle, transom clamp
Loading…
↗
4
9024304M0100
Pin(6a1)
Loading…
↗
5
9014914M0300
Screw(6j8)
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6J8431310100
Bolt, clamp bracket
Loading…
↗
8
6G5431450100
Cap, clamp bracket
Loading…
↗
9
901852204300
Nut, self-locking
Loading…
↗
10
9020122M0300
Washer, plate(64j)
Loading…
↗
11
9038622M6700
Bush(6a9)
Loading…
↗
12
6J8431130100
Plate, clamp bracket
Loading…
↗
13
689431910000
Shaft, stopper
Loading…
↗
14
689431920100
Knob, stopper
Loading…
↗
15
916903001600
Pin, spring
Loading…
↗
16
9370006M0300
Nipple, grease(6a1)
Loading…
↗
17
663451190000
Cap, grease nipple
Loading…
↗
18
689431600000
Tilt rod assembly
Loading…
↗
19
689431650000
Plate, tilt lock
Loading…
↗
20
916903000800
Pin. spring(656)
Loading…
↗
21
9050210M0700
Spring, conical(6k3)
Loading…
↗
22
901010833900
Bolt, hexagon (656)
Loading…
↗
23
903870901900
Collar
Loading…
↗
24
929950860000
Washer, plain (663)
Loading…
↗
25
953800860000
Nut (661)
Loading…
↗
26
68943311034D
Bracket, swivel 1
Loading…
↗
29
689436310000
Lever, tilt 1
Loading…
↗
30
689436330000
Cover, tilt lever
Loading…
↗
31
689436430000
Spring, torsion
Loading…
↗
32
689436160000
Rod, tilt lock 1
Loading…
↗
33
648436420000
Lever,tilt 2
Loading…
↗
34
9024906M2200
Pin(6a9)
Loading…
↗
35
648436170000
Rod, tilt lock 2
Loading…
↗
36
990800560000
Circlip(22k)
Loading…
↗
37
689436140100
Plate, tilt lock
Loading…
↗
38
648436150000
Plate, tilt lock 2
Loading…
↗
39
902400504700
Pin with hole(655)
Loading…
↗
40
914901601000
Pin, cotter
Loading…
↗
41
9050630M2700
Spring, tension(6a4)
Loading…
↗
42
689436810100
Lever, shallow water drive 1
Loading…
↗
43
682433180100
Cover
Loading…
↗
44
9010906M1800
Bolt (689)
Loading…
↗
45
9050616M1700
Spring, tension (689)
Loading…
↗
46
916904003500
Pin, spring (689)
Loading…
↗
