40QMH (1997)
Bracket 1

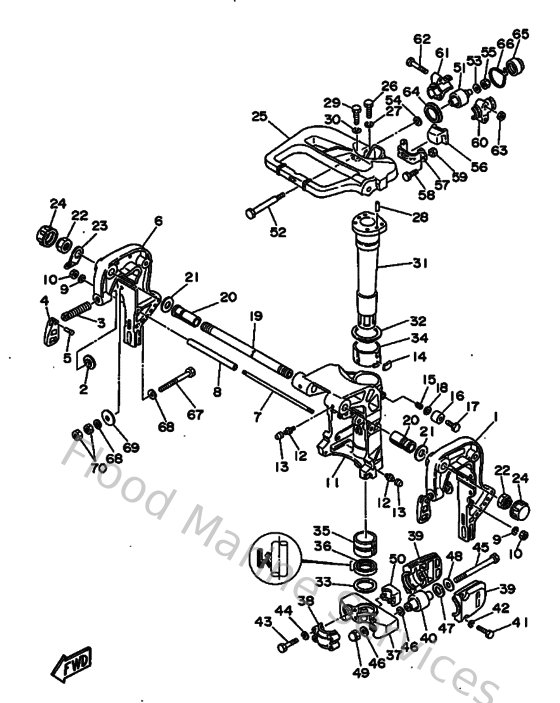

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
67643111044D
Bracket, clamp 1
Loading…
↗
2
648431140100
Pad, transom clamp
Loading…
↗
3
676431160000
Screw, Transom Clamp
Loading…
↗
4
66343118014D
Handle, transom clamp
Loading…
↗
5
902430400700
Pin (663)
Loading…
↗
6
67643112044D
Bracket, clamp 2
Loading…
↗
7
9011608M0000
Bolt, stud (676)
Loading…
↗
8
9038708M0200
Collar(6f6)
Loading…
↗
9
929900810000
Ybs67-8 washer, spring
Loading…
↗
10
988800810000
Nut, hex.
Loading…
↗
11
67643311024D
Bracket, swivel
Loading…
↗
12
9370006M0300
Nipple, grease(6a1)
Loading…
↗
13
663451190000
Cap, grease nipple
Loading…
↗
14
648425280000
Plate, friction
Loading…
↗
15
9050118M0000
Spring, compression (676)
Loading…
↗
16
676433730000
Damper, seal
Loading…
↗
17
970950802500
Bolt (62g)
Loading…
↗
18
929900860000
Washer, plain (663)
Loading…
↗
19
6J8431310100
Bolt, clamp bracket
Loading…
↗
20
9038622M1500
Bushing (688)
Loading…
↗
21
9020122M0300
Washer, plate(64j)
Loading…
↗
22
9018522M1100
Nut, self-locking
Loading…
↗
23
6J8431130100
Plate, clamp bracket
Loading…
↗
24
6G5431450100
Cap, clamp bracket
Loading…
↗
25
67642511024D
Bracket, steering
Loading…
↗
26
970950803000
Bolt, hexagon (fj1)
Loading…
↗
28
936081206300
Pin, dowel (626)
Loading…
↗
29
970950803500
Bolt(70w)
Loading…
↗
31
676425210094
Shaft, steering pivot
Loading…
↗
32
9020952M0000
Washer (676)
Loading…
↗
33
9020144M0100
Washer, plain (676)
Loading…
↗
34
9038652M0200
Bushing (676)
Loading…
↗
35
9038644M0300
Bushing (676)
Loading…
↗
36
9310944M0000
Oil seal (676)
Loading…
↗
37
67644551018D
Housing, lower mount rubber 1
Loading…
↗
38
67644552014D
Housing, lower mount rubber
Loading…
↗
39
67644553014D
Cover, lower mount
Loading…
↗
40
62Y445550000
Mount damper, lower side
Loading…
↗
43
970800804500
Bolt, hexagon
Loading…
↗
44
929950810000
Ybs67-8 washer, spring
Loading…
↗
45
9010112M0100
Bolt, hexagon (676)
Loading…
↗
46
9020112M1600
Washer, plate (679)
Loading…
↗
47
902022110000
Washer plate (663)
Loading…
↗
48
9020113M1100
Washer, plate (679)
Loading…
↗
49
953801280000
Nut crown(663)
Loading…
↗
50
676445750000
Damper, lower mount
Loading…
↗
51
679445140094
Mount damper, upper side
Loading…
↗
52
9010108M0200
Bolt, hexagon (676)
Loading…
↗
53
9020108M0800
Washer, plate (679)
Loading…
↗
54
9020109M0000
Washer, plain (676)
Loading…
↗
55
957800830000
Nut, nylon (6j8)
Loading…
↗
56
676445330000
Damper, upper mount rubber
Loading…
↗
57
676445180000
Bracket 1
Loading…
↗
58
9010106M2700
Bolt
Loading…
↗
59
953800660000
Nut(661)
Loading…
↗
60
676445110094
Cover, upper mount
Loading…
↗
61
676445120094
Cover, upper mount
Loading…
↗
62
970950805000
Bolt (62k)
Loading…
↗
63
953800860000
Nut (661)
Loading…
↗
64
676445210000
Seal, damper 1
Loading…
↗
65
676445220100
Seal, damper 2
Loading…
↗
66
9046511M5200
Clamp(6e7)
Loading…
↗
67
9010110M5800
Bolt
Loading…
↗
68
929901060000
Washer, plate
Loading…
↗
69
902011242600
Washe, plate(663)
Loading…
↗
70
953801060000
Nut(624)
Loading…
↗
