2BMH (1995)
Capot, Section Dalimentation

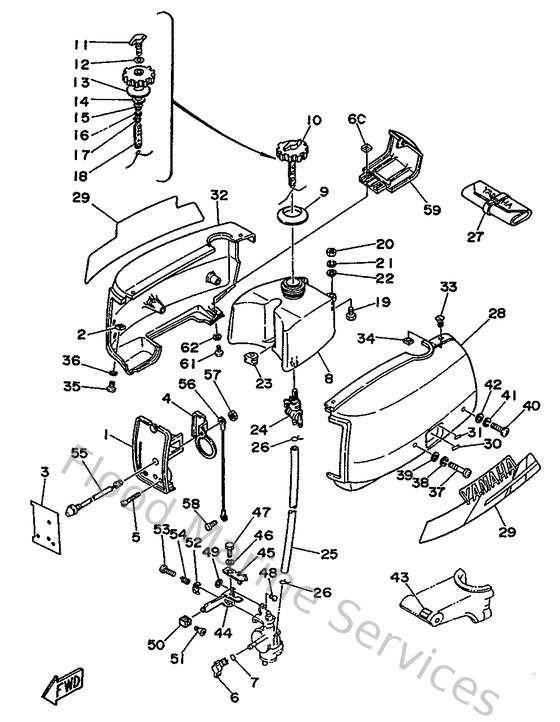

Diagram: Capot, Section Dalimentation
Parts List
Reference
Description
Price
1
6A1144410200
Silencer, intake 2
Loading…
↗
2
9017305M0000
Nut, square (6a1)
Loading…
↗
3
6A1426770100
Graphic Front
Loading…
↗
4
6A1144420000
Spacer 1
Loading…
↗
6
6A1412710000
Knob, choke
Loading…
↗
7
9321008M2900
O-ring (6a1)
Loading…
↗
8
6A1241100100
Fuel tank assembly
Loading…
↗
9
6A1241980000
Seat, rubber
Loading…
↗
10
6A1246100100
Cap assembly
Loading…
↗
11
6A1246310000
Screw, air
Loading…
↗
12
904300400500
Gasket 6112463200
Loading…
↗
13
904301411700
Gasket
Loading…
↗
14
646246150100
Gasket, Plate 1
Loading…
↗
15
905011037400
Spring, Compression
Loading…
↗
16
929070420000
Washer(6e1)
Loading…
↗
17
905011026000
Spring, safety 6152463500
Loading…
↗
18
646242410000
Indicator
Loading…
↗
19
970800601800
Bolt (fj0)
Loading…
↗
20
953800660000
Nut(661)
Loading…
↗
21
929950610000
Washer(6a1)
Loading…
↗
22
9020106M3000
Washer, plate (6a1)
Loading…
↗
23
6A1241810000
Damper, locating
Loading…
↗
24
6A1245000200
Fuel cock assembly 1
Loading…
↗
25
6A1243110000
Pipe 1
Loading…
↗
26
904670800400
Clip, pipe 6162435600
Loading…
↗
27
656W28100200
Tool kit
Loading…
↗
30
6A1241535000
Indicator, Cock
Loading…
↗
31
6A1241540000
Indicator, Shift
Loading…
↗
32
6A1427711100
Apron
Loading…
↗
33
987800501200
Screw(617)
Loading…
↗
34
9018305M0000
Nut, spring (6a1)
Loading…
↗
35
985800501000
Screw, pan head(62x)
Loading…
↗
36
929900560000
Washer, plain (646)
Loading…
↗
37
985800604000
Screw pan head
Loading…
↗
39
929900660000
Washer, plain (646)
Loading…
↗
40
985800602500
Screw, pan head(6b0)
Loading…
↗
43
6A1427920100
Mark (100:1)
Loading…
↗
44
6A1412120100
Arm, accel.
Loading…
↗
45
6A1412110000
Link,accel
Loading…
↗
46
929900510000
Ybs67-5 washer, spring
Loading…
↗
47
970950501000
Bolt (682)
Loading…
↗
48
6A1143650000
Pin, clevis
Loading…
↗
49
990800460000
Circlip (eu0)
Loading…
↗
50
6A1416370000
Knob, magneto control
Loading…
↗
51
987800301000
Screw, flat head (e56)
Loading…
↗
52
6A1412230000
Washer, lock 1
Loading…
↗
53
978950502500
Screw, pan head(62j)
Loading…
↗
54
9050112M1600
Spring (6a1)
Loading…
↗
55
6A1825500200
Stop switch assembly
Loading…
↗
56
6A1825410000
Wire, Lead
Loading…
↗
57
953800870000
Nut(661)
Loading…
↗
58
979800510800
Screw, with washer
Loading…
↗
59
6A1823751100
Cover, plug cap
Loading…
↗
