F45A (1996)
Capot Infprieur

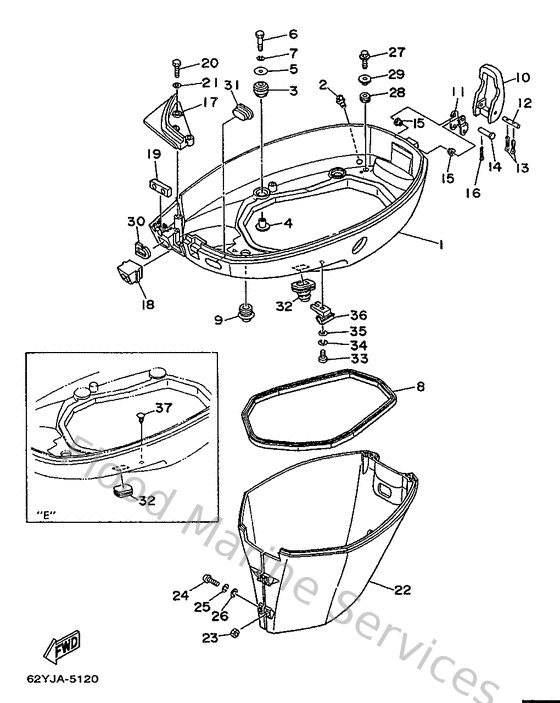

Diagram: Capot Infprieur
Parts List
Reference
Description
Price
1
62Y42711004D
Cowling, bottom
Loading…
↗
2
6H3443910100
Nipple, hose
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M6900
Collar (688)
Loading…
↗
5
902010641600
Washer, plate(663)
Loading…
↗
6
970950603000
Bolt(jf7)
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
62Y427160000
Rubber seal 1
Loading…
↗
9
6E5427240000
Grommet
Loading…
↗
10
62Y428280000
Plate, clamp
Loading…
↗
11
62Y428150000
Lever, clamp
Loading…
↗
12
9024905M3000
Pin(62y)
Loading…
↗
13
914901601000
Pin, cotter
Loading…
↗
14
9024005M1900
Pin, clevis(62y)
Loading…
↗
15
903860500200
Bush 626412910000
Loading…
↗
17
62Y42738005B
Plate, fitting
Loading…
↗
18
62Y427250000
Grommet
Loading…
↗
19
62Y427270000
Grommet
Loading…
↗
20
970950602000
Bolt(7u8)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
62Y42741004D
Apron
Loading…
↗
23
953800660000
Nut(661)
Loading…
↗
24
985800602500
Screw, pan head(6b0)
Loading…
↗
27
958800601600
Bolt, flange(jl8)
Loading…
↗
28
9048013M2400
Grommet (6e9)
Loading…
↗
29
9038706M4000
Collar
Loading…
↗
30
61N243290000
Seal
Loading…
↗
31
6H3427270000
Grommet
Loading…
↗
32
6H4427260000
Grommet
Loading…
↗
33
978850602500
Screw, pan head(6b0)
Loading…
↗
36
9046409M4300
Clamp(62y)
Loading…
↗
37
9033805M0300
Plug (6h1)
Loading…
↗
