30DEO (2001)
Control

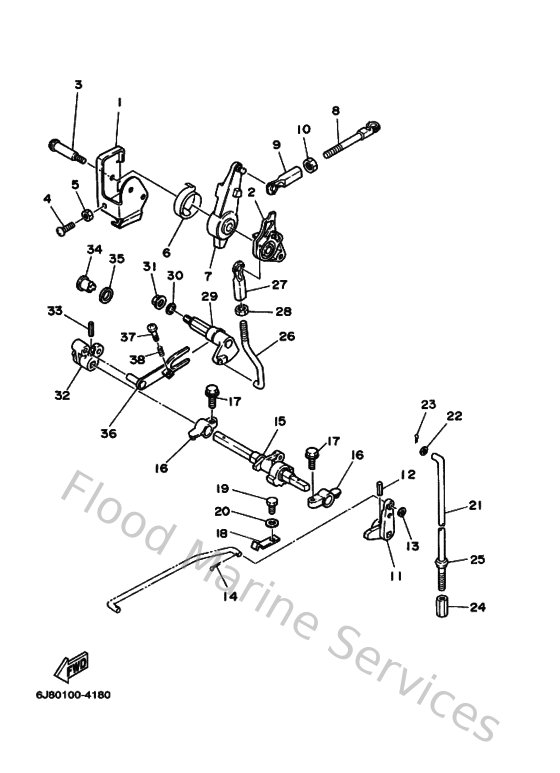

Diagram: Control
Parts List
Reference
Description
Price
1
6J8144970000
Stay, throttle wire
Loading…
↗
2
6J8412130000
Cam, accel.
Loading…
↗
3
9010906M2800
Bolt(6j8)
Loading…
↗
4
978800602500
Screw, pan head(6b0)
Loading…
↗
5
953030660000
Nut(661)
Loading…
↗
6
6J8421670000
Spring 1
Loading…
↗
7
6J8416310200
Lever, magneto control
Loading…
↗
8
689421690100
Joint
Loading…
↗
9
682412370000
Joint, link 2
Loading…
↗
10
953800560000
Nut, hexagon (663)
Loading…
↗
11
6J8441230000
Arm, shift rod
Loading…
↗
12
9025403M0400
Pin, spring (6h3)
Loading…
↗
15
6J8441210000
Lever, shift rod
Loading…
↗
16
6G1416620194
Bracket
Loading…
↗
17
975130652000
Bolt, with washer(61b)
Loading…
↗
18
6J8441160000
Spring
Loading…
↗
19
970950601200
Bolt(gh1)
Loading…
↗
20
929950660000
Washer, plain (646)
Loading…
↗
21
6J8441430000
Rod, shift
Loading…
↗
22
929900560000
Washer, plain (646)
Loading…
↗
23
914901601000
Pin, cotter
Loading…
↗
24
901700601500
Connector, shift rod
Loading…
↗
25
689433730100
Seal, damper
Loading…
↗
26
6J8421920000
Rod 2
Loading…
↗
29
6J8421540100
Lever, throttle control
Loading…
↗
30
902021002400
Washer plate 648441880000
Loading…
↗
31
957800830000
Nut, nylon (6j8)
Loading…
↗
32
6J8441420000
Joint
Loading…
↗
