F20AM (1998)
Control

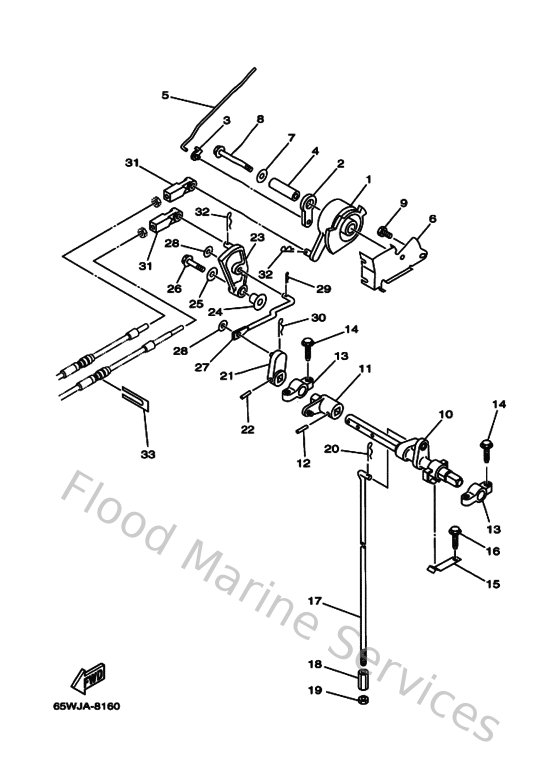

Diagram: Control
Parts List
Reference
Description
Price
1
65W416380000
Pulley
Loading…
↗
2
65W412830000
Lever, free accel.
Loading…
↗
3
661412620200
Joint, choke lever
Loading…
↗
4
9038706M0800
Collar
Loading…
↗
5
65W412110000
Link Accel.
Loading…
↗
6
65W144970000
Stay, Throttle Wire
Loading…
↗
7
9020106M3100
Washer (6a0)
Loading…
↗
8
975950655500
Bolt, hexagon w/w deep recess
Loading…
↗
9
970850601000
Bolt
Loading…
↗
10
65W441210000
Lever, shift rod
Loading…
↗
11
65W441220000
Bushing, Shift Rod Lever
Loading…
↗
12
916903032000
Pin, spring
Loading…
↗
13
6F5416620000
Bracket 2
Loading…
↗
14
9010906M8100
Bolt
Loading…
↗
15
65W441160000
Spring
Loading…
↗
16
9010906M8600
Bolt
Loading…
↗
17
65W441431000
Rod, shift
Loading…
↗
18
901700601500
Connector, shift rod
Loading…
↗
19
953800670000
Nut
Loading…
↗
20
904681800800
Clip 620436610000
Loading…
↗
21
65W441420000
Joint
Loading…
↗
23
65W441250000
Lever, shift rod
Loading…
↗
24
9038706M2900
Coller (6a0)
Loading…
↗
26
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
27
65W441920000
Joint, rod 1
Loading…
↗
28
9020105M0600
Washer, plate(61u)
Loading…
↗
29
904681000500
Pin, hair 6264123500
Loading…
↗
31
663483440000
Cable end, remote control
Loading…
↗
33
6H3485380000
Clamp, cable
Loading…
↗
