Yamaha Outboard Parts - Cowling & Fuel - 4ACMH (1988) | Flood Marine

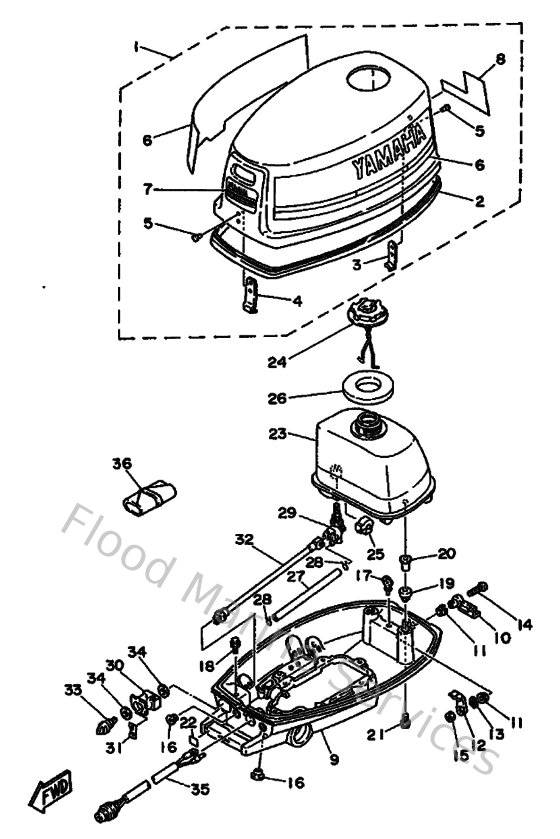

Diagram: Cowling & Fuel

Diagram

Parts List

Reference
Description
Price


2
6E0426150000
Seal
Loading…

↗
3
6E0426470100
Holder, clamp band
Loading…

↗
4
6E0426510100
Hook
Loading…

↗
5
9026604M0000
Rivet 2 (662)
Loading…

↗
7
662426770200
Graphic Front
Loading…

↗
10
6E04281500EJ
Lever Clamp 1
Loading…

↗
11
903861206900
Bush(666)
Loading…

↗
12
6E0428160000
Lever, clamp
Loading…

↗
13
902061205200
Washer, wave (666)
Loading…

↗
14
978950603000
Screw, pan head(6e0)
Loading…

↗
15
953030670000
Nut
Loading…

↗
16
9048014M1400
Grommet (6e0)
Loading…

↗
17
606425910000
Holder, shear pin
Loading…

↗
18
9010506M1500
Bolt (6e0)
Loading…

↗
19
6E0241820000
Damper, locating 2
Loading…

↗
20
6E0425420000
Pipe 1
Loading…

↗
21
958950602500
Bolt, flange deep recess
Loading…

↗
22
6A1427920100
Mark (100:1)
Loading…

↗
23
6E02411000EJ
Fuel Tank Comp
Loading…

↗
24
6E0246100200
Cap assembly
Loading…

↗
25
6E0241810000
Damper, locating 1
Loading…

↗
26
6E0246410000
Gasket, cap
Loading…

↗
27
9044509M3700
Hose (l1500)
Loading…

↗
28
904670800400
Clip, pipe 6162435600
Loading…

↗
29
6E0245000000
Fuel cock assembly 1
Loading…

↗
30
6E0245710000
Bushing
Loading…

↗
32
6E0245720000
Shaft, fuel change
Loading…

↗
33
6E0245750100
Lever, fuel change
Loading…

↗
34
9020212M1700
Washer, plate (6e0)
Loading…

↗
35
6E0825500000
Stop switch assembly
Loading…

↗
36
6E0281000100
Tool kit
