30AMH (1992)
Crankshaft & Piston

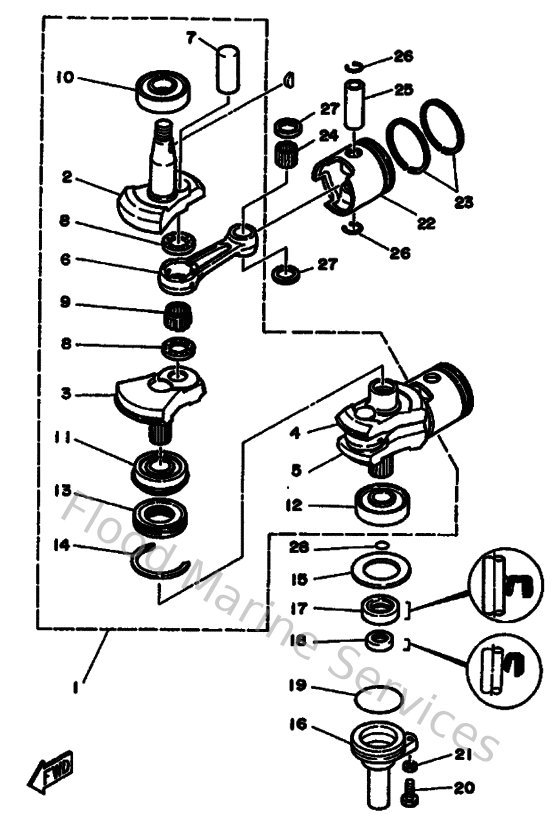

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
2
689114120300
Crank 1
Loading…
↗
3
689114220200
Crank 2
Loading…
↗
4
689114320200
Crank 3
Loading…
↗
5
689114420200
Crank 4
Loading…
↗
6
689116510000
Rod, connecting
Loading…
↗
7
689116810100
Pin, crank
Loading…
↗
8
9020924M0300
Washer, plate (689)
Loading…
↗
9
93310624U500
Brg,cyl-cal roller 37g (689)
Loading…
↗
10
93306306U300
Brg R-B 6306 72Mm (6A8)
Loading…
↗
11
933900000900
Brg,cyl-cal roller 260g nt
Loading…
↗
12
93306305U300
Bearing(6j8)
Loading…
↗
14
934406205700
Cir clip (656)
Loading…
↗
15
902015030600
Washer plate 648115870000
Loading…
↗
17
9310125M3500
Oil seal(6a4)
Loading…
↗
18
9310116M3600
Oil seal(6a8)
Loading…
↗
19
9321057M0900
O-ring (683)
Loading…
↗
20
973950602200
Bolt(61k)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
689116310095
Piston Std
Loading…
↗
23
689116102100
Piston Ring Set Os (2Nd O/s)
Loading…
↗
24
9360220M0200
Pin, dowel b (664)
Loading…
↗
25
689116330000
Pin, piston
Loading…
↗
26
688116340000
Clip, piston pin
Loading…
↗
27
9020120M2700
Washer, plate (689)
Loading…
↗
28
932101627500
O-ring
Loading…
↗
