F45A (1996)
Crankshaft & Piston

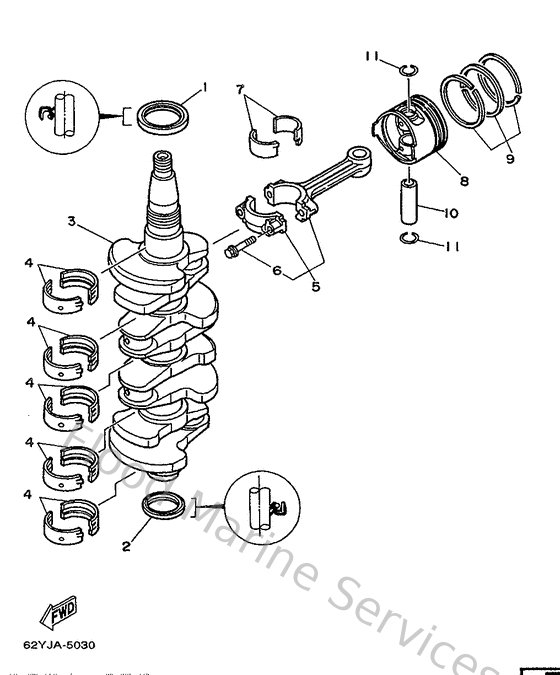

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
9310243M4200
Oil seal(62y)
Loading…
↗
2
9310235M4100
Oil seal(62y)
Loading…
↗
3
62Y114110000
Crankshaft & nut set
Loading…
↗
4
62Y114162000
Plane bearing, crankshaft 1
Loading…
↗
5
62Y116500000
Connecting rod assembly
Loading…
↗
6
62Y116540000
Bolt, connecting rod
Loading…
↗
7
62Y116562000
Plane bearing, connecting rod
Loading…
↗
8
62Y116310096
Piston (Std)
Loading…
↗
9
62Y116030000
Piston ring set (std)
Loading…
↗
10
62Y116330000
Pin, piston
Loading…
↗
11
934501712900
Circlip(1ar)
Loading…
↗
