20CMH (2001)
Cylinder & Crankcase

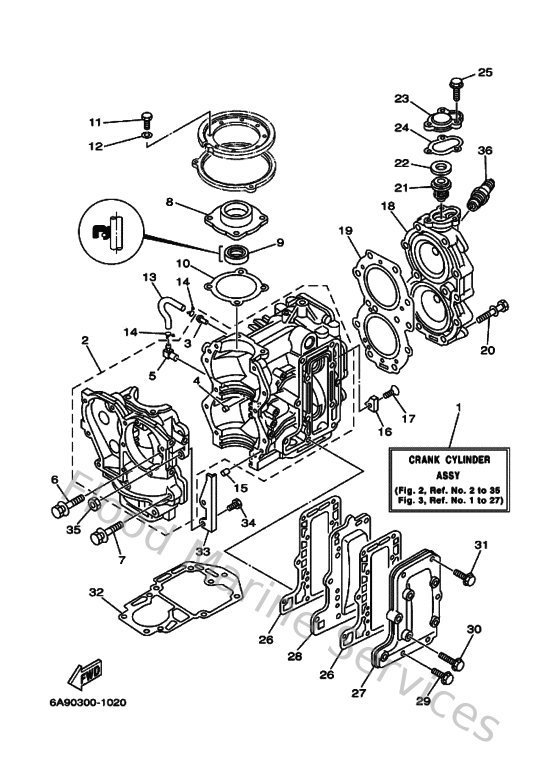

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
3
624144850000
Pipe, joint
Loading…
↗
4
624113790000
Valve, check
Loading…
↗
5
650113700000
Check valve assembly
Loading…
↗
6
901190800900
Bolt, with washer
Loading…
↗
7
9011908M6600
Bolt, with washer
Loading…
↗
8
664153590194
Housing, Oil Seal
Loading…
↗
9
931022309600
Oil seal (23x38x7-648)
Loading…
↗
10
66415369A000
Gasket, oil seal housing
Loading…
↗
11
970130602000
Bolt(62y)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
904450726000
Hose (l390)
Loading…
↗
14
904670601600
Clip (655)
Loading…
↗
15
936061201900
Pin, dowel (614)
Loading…
↗
16
689113250000
Anode
Loading…
↗
17
9015106M0200
Screw, countersunk
Loading…
↗
19
69511181A100
Gasket, cylinder head 1
Loading…
↗
20
901190801600
Bolt, With Washer
Loading…
↗
21
6F5124110300
Thermostat
Loading…
↗
22
902012156700
Washer, plate (650)
Loading…
↗
23
65512413019M
Cover, thermostat
Loading…
↗
24
65512414A100
Gasket, cover
Loading…
↗
25
9011906MA200
Bolt, with washer
Loading…
↗
26
66441114A000
Gasket, exhaust outer cover
Loading…
↗
27
664411130094
Outer cover, exhaust
Loading…
↗
28
664411110000
Inner cover, exhaust
Loading…
↗
29
9011906MA300
Bolt, with washer
Loading…
↗
30
9011906MA400
Bolt, with washer
Loading…
↗
31
9011906MA500
Bolt, with washer
Loading…
↗
32
68945113A100
Gasket, upper casing
Loading…
↗
33
695416160000
Stopper, Magneto Base
Loading…
↗
35
953800660000
Nut(661)
Loading…
↗
36
947020027200
Plug, spark (br7hs)
Loading…
↗
