25BMH (2001)
Cylinder & Crankcase

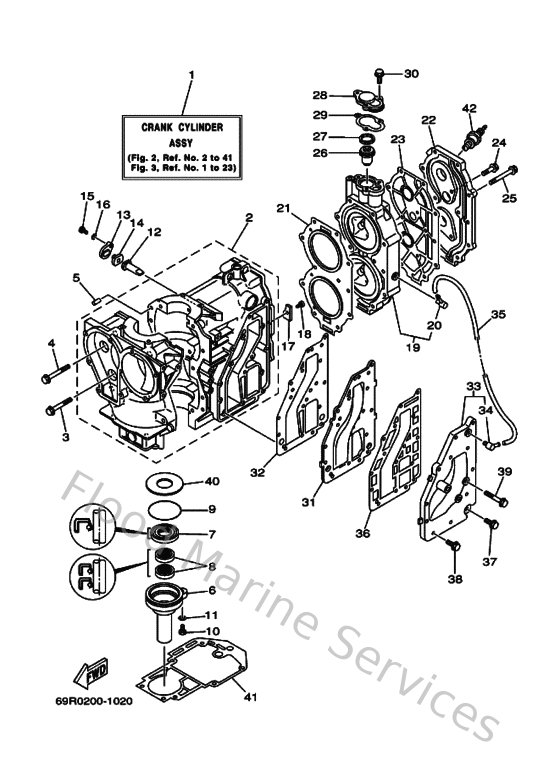

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
69PW0090001S
Crank cylinder assembly
Loading…
↗
2
69P15100001S
Crankcase assembly
Loading…
↗
3
901190800900
Bolt, with washer
Loading…
↗
4
9011908M6500
Bolt, with washer
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
68915396015B
Housing, oil seal
Loading…
↗
7
931022500800
Oil seal
Loading…
↗
8
931011600100
Oil seal
Loading…
↗
9
9321058M2100
O-ring (683)
Loading…
↗
10
970950602200
Bolt(61k)
Loading…
↗
11
929950660000
Washer, plain (646)
Loading…
↗
12
6J8113250000
Anode
Loading…
↗
13
6H3113270094
Cover, anode
Loading…
↗
14
6H3113280000
Grommet, anode
Loading…
↗
15
970130601600
Bolt, hexagon deep recess
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
689113250000
Anode
Loading…
↗
18
9015106M0200
Screw, countersunk
Loading…
↗
19
61N11111011S
Head, cylinder 1
Loading…
↗
20
676113720000
Nipple, hose
Loading…
↗
21
61N11181A100
Gasket, cylinder head 1
Loading…
↗
22
61N11191011S
Cover, cylinder head 1
Loading…
↗
23
61T11193A100
Gasket, head cover 1
Loading…
↗
24
9011906MA200
Bolt, with washer
Loading…
↗
25
901190801500
Bolt, with washer
Loading…
↗
26
6E5124110100
Thermostat
Loading…
↗
27
902012156700
Washer, plate (650)
Loading…
↗
28
65512413011S
Cover, thermostat
Loading…
↗
29
65512414A100
Gasket, cover
Loading…
↗
31
6K841121001S
Inner cover,exhaust
Loading…
↗
32
6K841122A100
Gasket, exhaust inner cover
Loading…
↗
33
61N41123001S
Outer cover, exhaust
Loading…
↗
35
9044510M4300
Hose (l400)
Loading…
↗
36
6K841124A100
Gasket, exhaust outer cover
Loading…
↗
37
9011906MA300
Bolt, with washer
Loading…
↗
38
9011906MA400
Bolt, with washer
Loading…
↗
39
9011906MA000
Bolt, hexagon w/w deep recess
Loading…
↗
40
902015030600
Washer plate 648115870000
Loading…
↗
41
68945113A100
Gasket, upper casing
Loading…
↗
42
947020027100
Plug, spark (br7hs-10)
Loading…
↗
