30AMH (1992)
Cylinder & Crankcase

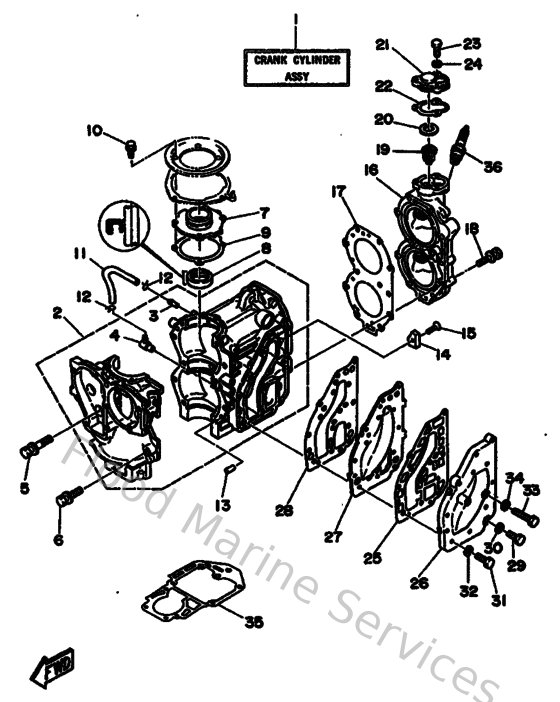

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
3
624144850000
Pipe, joint
Loading…
↗
4
650113700000
Check valve assembly
Loading…
↗
5
9011908M1800
Bolt, with washer
Loading…
↗
6
9011908M6600
Bolt, with washer
Loading…
↗
7
689153590094
Housing, Oil Seal
Loading…
↗
8
9310225M1100
Oil Seal (689)
Loading…
↗
9
68915369A000
Gasket Oil Seal Housing
Loading…
↗
10
9010506M0900
Bolt, flange
Loading…
↗
11
9044507M2400
Hose (l390)
Loading…
↗
12
904670601600
Clip (655)
Loading…
↗
13
936061201900
Pin, dowel (614)
Loading…
↗
14
689113250000
Anode
Loading…
↗
15
987800602000
Screw flat head
Loading…
↗
16
689111110194
Head, Cylinder
Loading…
↗
17
68911181A200
Gasket, cylinder head 1
Loading…
↗
19
6H7124110100
Thermostat
Loading…
↗
20
902012156700
Washer, plate (650)
Loading…
↗
21
65512413011S
Cover, thermostat
Loading…
↗
22
65512414A100
Gasket, cover
Loading…
↗
23
973130602000
Bolt(7u8)
Loading…
↗
24
929900660000
Washer, plain (646)
Loading…
↗
25
68941112A000
Gasket, exhaust inner cover
Loading…
↗
26
68941113001S
Outer Cover, Exhaust
Loading…
↗
27
68941111009M
Inner cover, exhaust
Loading…
↗
28
68941114A000
Gasket, exhaust outer cover
Loading…
↗
29
9010106M2700
Bolt
Loading…
↗
31
973130603000
Bolt
Loading…
↗
33
970130606000
Bolt, hexagon
Loading…
↗
35
68945113A100
Gasket, upper casing
Loading…
↗
36
947020027200
Plug, spark (br7hs)
Loading…
↗
