9.9DMH (1986)
Cylinder & Crankcase

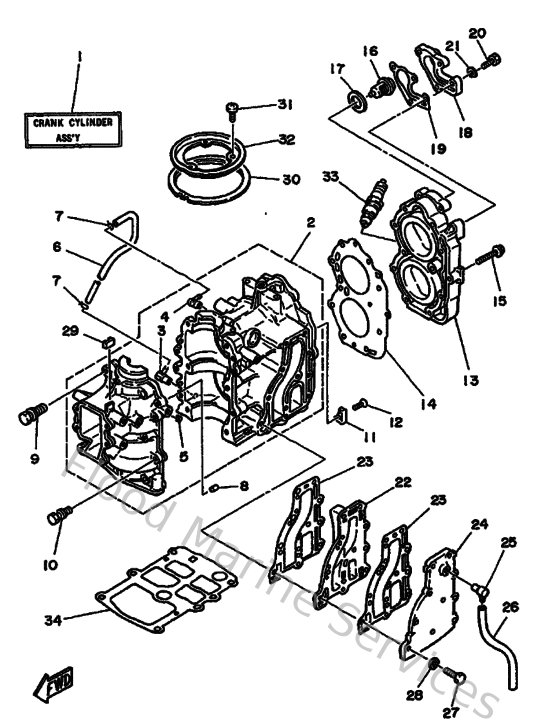

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
6E7151000094
Crankcase Assembly
Loading…
↗
3
650113700000
Check valve assembly
Loading…
↗
4
650144850200
Pipe, joint
Loading…
↗
5
624113790000
Valve, check
Loading…
↗
6
9044507M0800
Hose (l390)
Loading…
↗
7
904670601600
Clip (655)
Loading…
↗
8
936061201900
Pin, dowel (614)
Loading…
↗
10
9011906M1300
Bolt, with washer (682)
Loading…
↗
11
682113250000
Anode 1
Loading…
↗
12
987800501600
Ybs53-516 screw,flat head
Loading…
↗
13
6E7111110094
Head, cylinder 1
Loading…
↗
14
682111810100
Gasket, cylinder head 1
Loading…
↗
15
9010507M0500
Bolt (682)
Loading…
↗
16
6F5124110300
Thermostat
Loading…
↗
17
902012156700
Washer, plate (650)
Loading…
↗
18
682124130094
Cover, thermostat
Loading…
↗
19
68212414A100
Gasket, cover
Loading…
↗
20
973130602000
Bolt(7u8)
Loading…
↗
21
929030660000
Washer, plain (646)
Loading…
↗
22
68241111001S
Inner caver, exhaust
Loading…
↗
23
682411120000
Gasket, exhaust inner cover
Loading…
↗
24
68241113009M
Outer Cover, Exhaust
Loading…
↗
25
676113720000
Nipple, hose
Loading…
↗
26
904450901000
Hose (L260)
Loading…
↗
27
973950602500
Bolt
Loading…
↗
28
929900660000
Washer, plain (646)
Loading…
↗
29
682416150000
Stopper, Magneto Base
Loading…
↗
31
978030601000
Screw pan head
Loading…
↗
32
682416110000
Retainer, Magneto Base
Loading…
↗
33
947020027100
Plug, spark (br7hs-10)
Loading…
↗
34
682113510200
Gasket, cylinder
Loading…
↗
