E25AMH (2001)
Cylinder & Crankcase

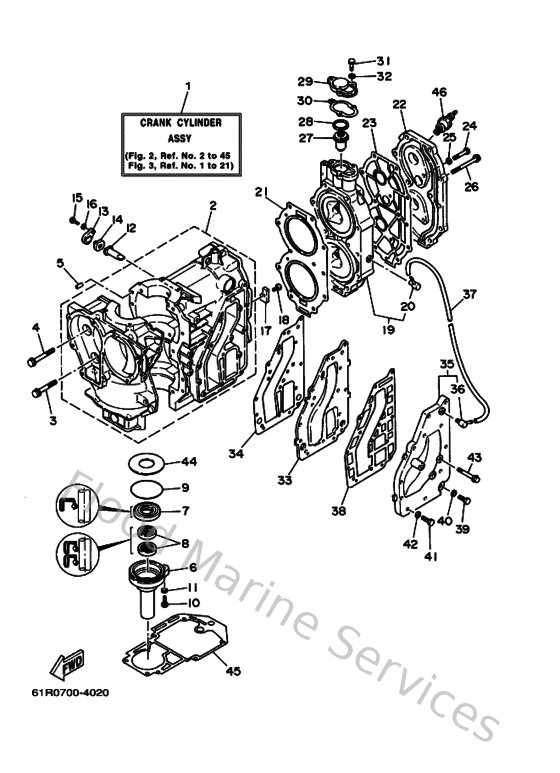

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
61N151000094
Crankcase assembly
Loading…
↗
3
9011908M1800
Bolt, with washer
Loading…
↗
4
9011908M6600
Bolt, with washer
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
68915396015B
Housing, oil seal
Loading…
↗
7
9310125M3500
Oil seal(6a4)
Loading…
↗
8
9310116M3600
Oil seal(6a8)
Loading…
↗
9
9321058M2100
O-ring (683)
Loading…
↗
10
970950602200
Bolt(61k)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6J8113250000
Anode
Loading…
↗
13
6H3113270094
Cover, anode
Loading…
↗
14
6H3113280000
Grommet, anode
Loading…
↗
15
970140601600
Bolt, hexagon deep recess
Loading…
↗
16
929030660000
Washer, plain (646)
Loading…
↗
17
689113250000
Anode
Loading…
↗
18
9015106M0200
Screw, countersunk
Loading…
↗
19
61N111110194
Head, cylinder 1
Loading…
↗
20
676113720000
Nipple, hose
Loading…
↗
21
61N11181A100
Gasket, cylinder head 1
Loading…
↗
22
61N11191019M
Cover, cylinder head 1
Loading…
↗
23
61N111930200
Gasket, head cover 1
Loading…
↗
24
970130602200
Bolt, hexagon
Loading…
↗
26
901190801500
Bolt, with washer
Loading…
↗
27
6E5124110100
Thermostat
Loading…
↗
28
902012156700
Washer, plate (650)
Loading…
↗
29
65512413011S
Cover, thermostat
Loading…
↗
30
65512414A100
Gasket, cover
Loading…
↗
31
970130602000
Bolt(62y)
Loading…
↗
33
6K841121001S
Inner cover,exhaust
Loading…
↗
34
6K841122A100
Gasket, exhaust inner cover
Loading…
↗
35
61N41123009M
Outer Cover, Exhaust
Loading…
↗
37
9044510M4300
Hose (l400)
Loading…
↗
38
6K841124A100
Gasket, exhaust outer cover
Loading…
↗
39
970130602500
Bolt(62y)
Loading…
↗
41
970130603000
Bolt
Loading…
↗
43
9011906MA000
Bolt, hexagon w/w deep recess
Loading…
↗
44
902015030600
Washer plate 648115870000
Loading…
↗
45
61T45113A000
Gasket, upper casing
Loading…
↗
46
947020027100
Plug, spark (br7hs-10)
Loading…
↗
