20CMH (1985)
Electric Parts

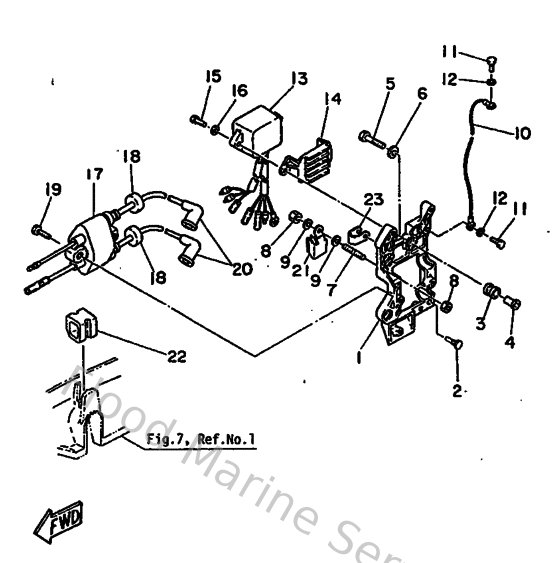

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
695855420094
Bracket
Loading…
↗
2
689855470000
Damper
Loading…
↗
3
663823170000
Damper, ignition coil
Loading…
↗
4
624425420000
Collar
Loading…
↗
5
973130602500
Bolt
Loading…
↗
6
9020106M0800
Washer, plate(6e3)
Loading…
↗
7
9011606M0700
Bolt, stud (688)
Loading…
↗
8
953030660000
Nut(661)
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
689825190000
Wire Earth Lead
Loading…
↗
11
970130601200
Bolt(gh1)
Loading…
↗
12
929030610000
Washer(6a1)
Loading…
↗
13
695855401200
C.d.i. unit assembly
Loading…
↗
14
689855480100
Holder
Loading…
↗
15
9010106M2700
Bolt
Loading…
↗
17
680855700900
Ignition coil assembly
Loading…
↗
18
904802516100
Grommet(656)
Loading…
↗
20
663823700100
Plug cap assembly
Loading…
↗
21
9046508M1300
Clamp (695)
Loading…
↗
22
9048017M0800
Grommet (689)
Loading…
↗
