20CMH (1985)
Electric Parts 2

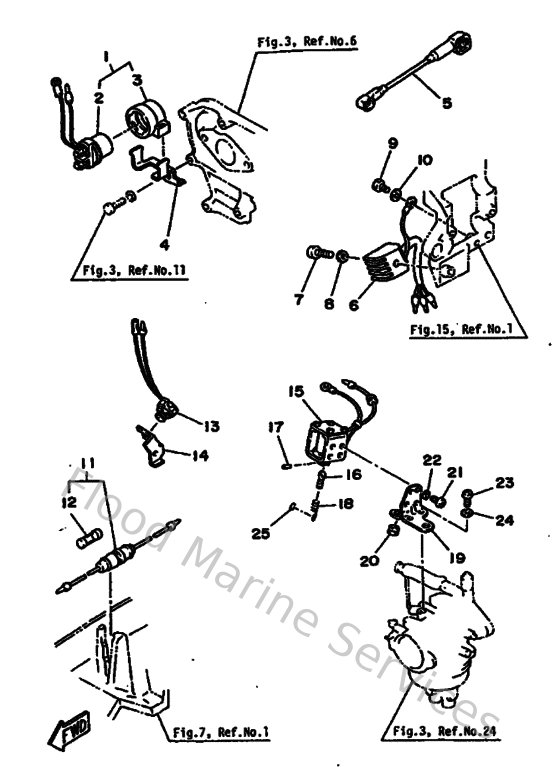

Diagram: Electric Parts 2
Parts List
Reference
Description
Price
1
6G1819400000
Starter relay
Loading…
↗
2
6G1819411000
Starter relay
Loading…
↗
3
6G1819520000
Holder, relay
Loading…
↗
4
695819450000
Plate, Switch Fitting
Loading…
↗
6
664819706200
Rectifier assembly
Loading…
↗
7
978030502500
Screw, panhead (a93)
Loading…
↗
8
929900560000
Washer, plain (646)
Loading…
↗
9
973130601200
Bolt(gh1)
Loading…
↗
10
929030610000
Washer(6a1)
Loading…
↗
11
682821501000
Fuse holder assembly
Loading…
↗
12
682821510100
Fuse
Loading…
↗
13
689825400100
Neutral switch ass'y
Loading…
↗
14
656157744100
Stay 4 (For Neutral Switch)
Loading…
↗
16
682861170000
Hook, wire pull
Loading…
↗
17
916903001000
Pin, spring (663)
Loading…
↗
18
682861160000
Wire, pull
Loading…
↗
19
689861120100
Stay, Solenoid
Loading…
↗
20
904801015500
Grommet(664)
Loading…
↗
21
985800400600
Screw, pan head (7h3)
Loading…
↗
22
929030420000
Ybs66-4 washer, plain
Loading…
↗
23
978030501200
Screw,pan head (646)
Loading…
↗
24
929030560000
Washer, plain (646)
Loading…
↗
25
932100326100
O-ring (663)
Loading…
↗
