Yamaha Outboard Parts - Electric Parts 2 - F8AMH (1989) | Flood Marine

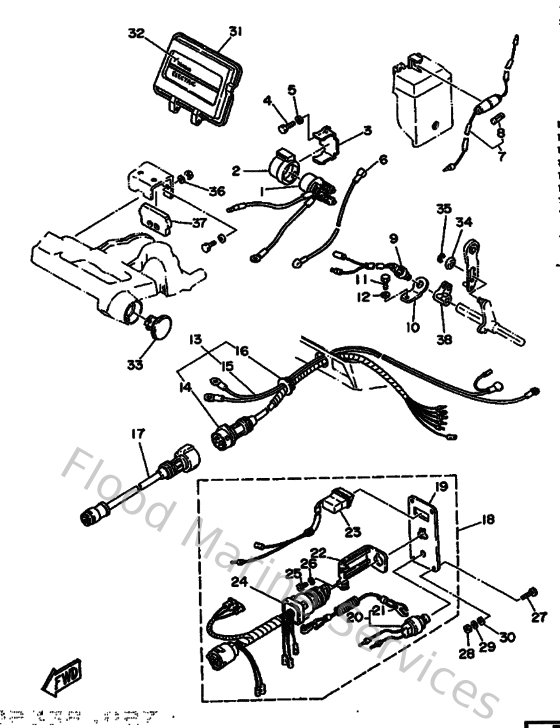

Diagram: Electric Parts 2

Diagram

Parts List

Reference
Description
Price


1
6J0819411000
Relay, starter
Loading…

↗
2
6G1819520000
Holder, relay
Loading…

↗
3
6G8819530000
Stay, relay
Loading…

↗
4
973130601200
Bolt(gh1)
Loading…

↗
5
929900660000
Washer, plain (646)
Loading…

↗
6
6G8821170000
Wire, lead
Loading…

↗
7
6G8821500000
Fuse holder assembly
Loading…

↗
8
663821510000
Fuse
Loading…

↗
9
688825401200
Neutral switch assembly
Loading…

↗
10
6G8825540000
Stay Neutral Switch
Loading…

↗
13
6G8825800000
Wire harness assembly
Loading…

↗
14
6G8825900000
Wire Harness assembly
Loading…

↗
15
6G8821050000
Battery Cable
Loading…

↗
16
6G8427245000
Grommet
Loading…

↗
18
6G8825700400
Switch :ob
Loading…

↗
19
6G8825710100
Panel, Switch
Loading…

↗
20
688825750100
Engine stop switch assembly
Loading…

↗
21
682825560000
Lanyard, stop switch
Loading…

↗
22
663825810100
Stay, cord clamp
Loading…

↗
23
6G8835820100
Pilot Light assembly
Loading…

↗
24
6G8825100000
Main Switch assembly
Loading…

↗
25
989800400800
Screw, bind (705)
Loading…

↗
26
929030410000
Ybs67-4 washer, spring
Loading…

↗
27
9014905M0500
Screw(6k0)
Loading…

↗
28
953800560000
Nut, hexagon (663)
Loading…

↗
29
929900510000
Ybs67-5 washer, spring
Loading…

↗
30
929900560000
Washer, plain (646)
Loading…

↗
32
6G8426772000
Graphic, Front
Loading…

↗
33
6G8425510000
Grommet
Loading…

↗
34
9038706M7300
Collar
Loading…

↗
35
990800460000
Circlip (eu0)
Loading…

↗
37
6G8483515000
Seal, rubber
Loading…

↗
38
6G8441250000
Lever, Shift Rod
Loading…

↗
