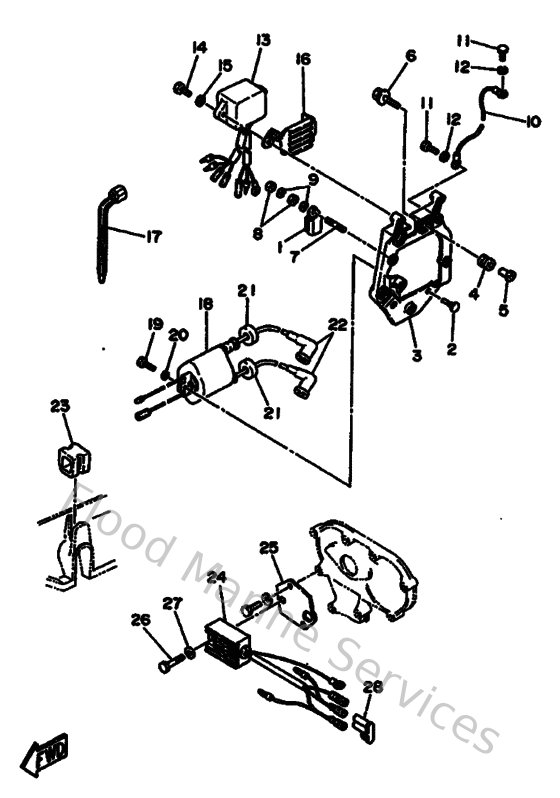

Diagram: Electrical

Diagram

Parts List

Reference
Description
Price


1
9046508M0500
Clamp
Loading…

↗
2
689855470000
Damper
Loading…

↗
4
6A0823170000
Damper, ignition coil
Loading…

↗
5
624425420000
Collar
Loading…

↗
6
9011906M8800
Bolt, with washer
Loading…

↗
7
9011606M0700
Bolt, stud (688)
Loading…

↗
8
953030660000
Nut(661)
Loading…

↗
9
929950610000
Washer(6a1)
Loading…

↗
10
689825190000
Wire Earth Lead
Loading…

↗
11
970130601200
Bolt(gh1)
Loading…

↗
12
929900610000
Washer(6a1)
Loading…

↗
13
689855402000
C.d.i. Unit Assembly
Loading…

↗
14
9010106M2700
Bolt
Loading…

↗
15
929900660000
Washer, plain (646)
Loading…

↗
16
689855480100
Holder
Loading…

↗
17
9046513M3900
Clamp(6e8)
Loading…

↗
18
689855702000
Ignition coil assembly
Loading…

↗
19
973130602500
Bolt
Loading…

↗
21
904802516100
Grommet(656)
Loading…

↗
22
6E3823702000
Plug cap assembly
Loading…

↗
23
9048017M0800
Grommet (689)
Loading…

↗
24
6J8819600000
Rectifier & regulator assembly
Loading…

↗
26
973950601600
Bolt, hexagon deep recess
Loading…

↗
28
6E5825820000
Cap 1
Loading…

↗
