F9.9CMH (2001)
Electrical 1

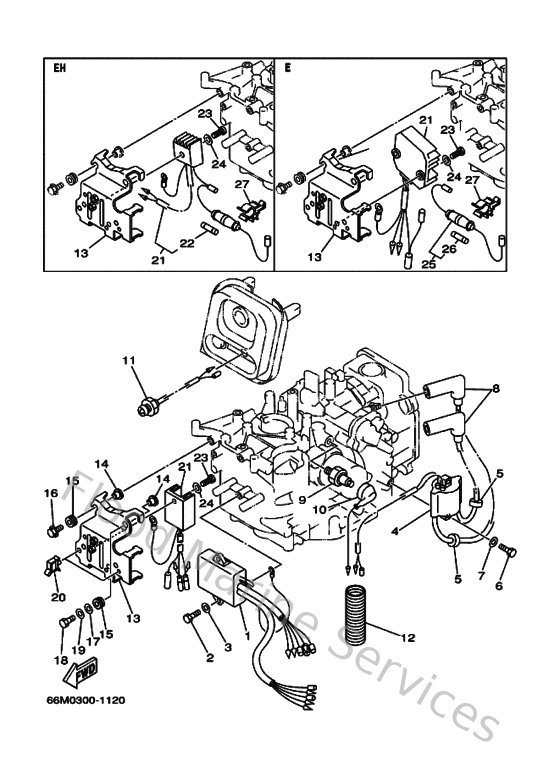

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
66M855400100
C.d.i. Unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
66M855700000
Ignition coil assembly
Loading…
↗
5
904802516100
Grommet(656)
Loading…
↗
6
970800602000
Bolt(7u8)
Loading…
↗
8
6G8823703000
Plug cap assembly
Loading…
↗
9
62Y825041000
Oil pressure switch assembly
Loading…
↗
10
66M821271000
Wire, lead 2
Loading…
↗
11
65W854100100
Emergency signal light assembly
Loading…
↗
12
6H1835570000
Tube
Loading…
↗
13
66M855420000
Bracket
Loading…
↗
14
9038706M0500
Collar(6h4)
Loading…
↗
15
9048013M2400
Grommet (6e9)
Loading…
↗
16
958950602000
Bolt, flange(jk3)
Loading…
↗
17
9020106M0500
Washer, plate(6e3)
Loading…
↗
18
970950602500
Bolt
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
9046409M1300
Clamp (6h1)
Loading…
↗
21
6J8819600000
Rectifier & regulator assembly
Loading…
↗
23
970950601600
Bolt, hexagon deep recess
Loading…
↗
