L250AETO (1998)
Electrical 1

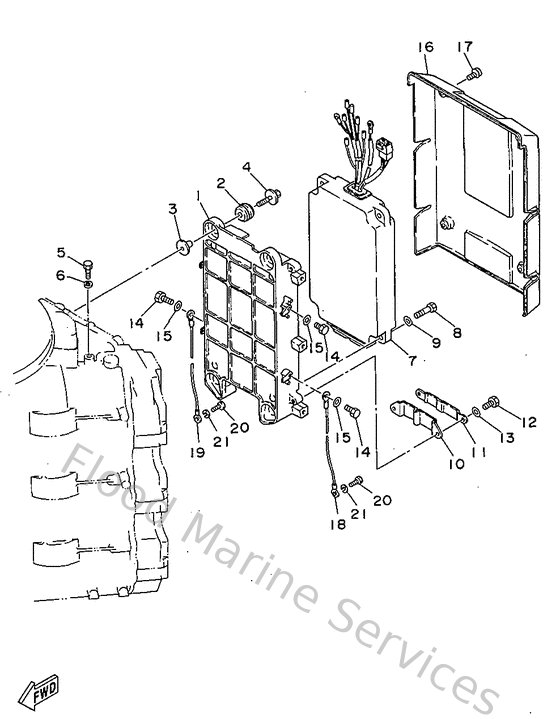

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
61A855420194
Bracket
Loading…
↗
2
9048009M1200
Grommet (6a0)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9011906M2800
Bolt, With Washer
Loading…
↗
5
970950601600
Bolt, hexagon deep recess
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
62J855400200
C.d.i. Unit assembly
Loading…
↗
8
970130602500
Bolt(62y)
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
61A855480000
Holder
Loading…
↗
11
61A855250000
Cover
Loading…
↗
14
970130601400
Bolt(gj3)
Loading…
↗
16
61A855370000
Cover
Loading…
↗
17
9015906M0300
Screw (6g5)
Loading…
↗
18
61A825190000
Wire, Earth Lead
Loading…
↗
19
6G0825190000
Wire, earth lead
Loading…
↗
20
970130601200
Bolt(gh1)
Loading…
↗
21
929950610000
Washer(6a1)
Loading…
↗
