40VMO (2000)
Fuel

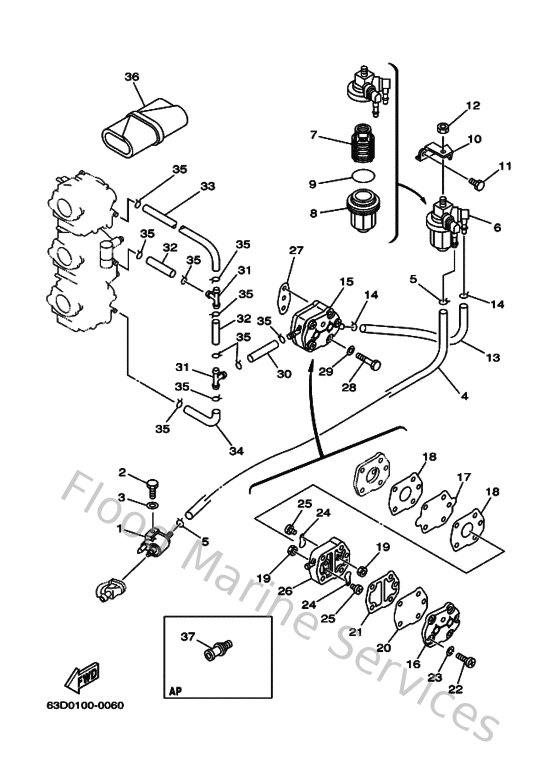

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602500
Bolt
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
90445090F600
Hose (l1500)
Loading…
↗
5
904670800400
Clip, pipe 6162435600
Loading…
↗
6
61N245600000
Filter assembly
Loading…
↗
7
61N245630000
Element, filter
Loading…
↗
8
61N245210000
Cup, filter
Loading…
↗
9
932103273800
O-ring(1wg)
Loading…
↗
10
6H4245660100
Bracket, filter
Loading…
↗
11
970130601400
Bolt(gj3)
Loading…
↗
12
988800810000
Nut, hex.
Loading…
↗
13
6H4243140000
Pipe 4
Loading…
↗
15
692244100000
Fuel pump assembly
Loading…
↗
16
6A0244130000
Cover, pump
Loading…
↗
17
692244110000
Diaphragm
Loading…
↗
18
648244340100
Gasket, body
Loading…
↗
19
953800360000
Nut (6g8)
Loading…
↗
20
663244110000
Diaphragm
Loading…
↗
21
648244350200
Gasket, body 2
Loading…
↗
22
985030502800
Ybs86-530 screw,panhead
Loading…
↗
23
929900510000
Ybs67-5 washer, spring
Loading…
↗
24
6A0244210100
Valve, check
Loading…
↗
25
6A0143250000
Screw, pan head
Loading…
↗
26
6A0244120200
Body 1
Loading…
↗
27
65024431A000
Gasket,fuel pump
Loading…
↗
28
970950604000
Bolt (682)
Loading…
↗
29
929900660000
Washer, plain (646)
Loading…
↗
30
904450906300
Hose (l1500)
Loading…
↗
31
688243780000
Pipe, joint
Loading…
↗
32
904450905700
Hose (l180)
Loading…
↗
33
6H4243130000
Pipe 3
Loading…
↗
34
6H4243120000
Pipe, fuel 2
Loading…
↗
36
656W28100200
Tool kit
Loading…
↗
37
6E0281930094
Plug, water check
Loading…
↗
