5CMH (1987)
Fuel

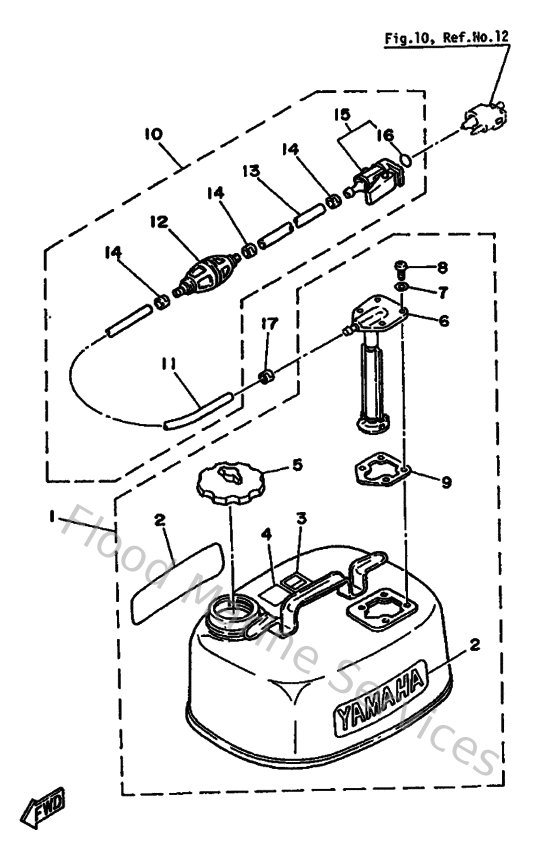

Diagram: Fuel
Parts List
Reference
Description
Price
3
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
5
647246100300
Cap assembly
Loading…
↗
6
6Y0242750000
Fuel Meter Comp
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
9015705M1900
Screw, pan head
Loading…
↗
9
663242680000
Gasket, housing fuel meter
Loading…
↗
11
9044511M7900
Hose (l3000)
Loading…
↗
12
6YL243606300
Primer pump assembly
Loading…
↗
13
9044511M0500
Hose (l1000)
Loading…
↗
14
650243510100
Band 1
Loading…
↗
15
6G1243050500
Fuel pipe joint comp. 2
Loading…
↗
16
932100828700
O-ring (655)
Loading…
↗
