Yamaha Outboard Parts - Fuel - F20AM (1999) | Flood Marine
New Search
Parts
New Outboards
Home
F20AM (1999)
Fuel

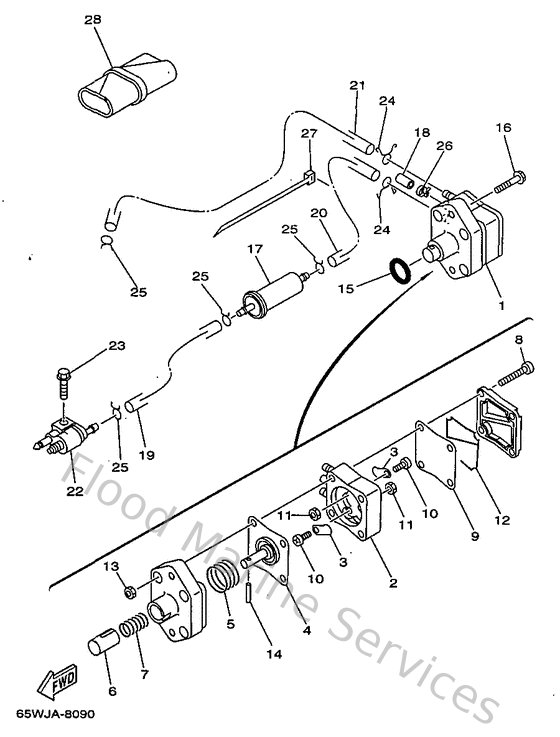

Diagram: Fuel
Parts List
Reference
Description
Price
1
62Y244100200
Fuel pump assembly
Loading…
↗
2
62Y244130000
Body 4
Loading…
↗
3
62Y244210100
Valve, check
Loading…
↗
4
62Y244110200
Diaphragm
Loading…
↗
5
62Y244230000
Spring, diaphragm
Loading…
↗
6
62Y131310100
Plunger
Loading…
↗
7
62Y244540000
Spring
Loading…
↗
8
62Y244440000
Screw
Loading…
↗
9
62Y244710000
Diaphragm
Loading…
↗
10
6A0143250000
Screw, pan head
Loading…
↗
12
62Y244520000
Packing
Loading…
↗
14
62Y243740100
Pin
Loading…
↗
17
65W242510000
Strainer 1
Loading…
↗
18
65W244810000
Plug
Loading…
↗
22
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
28
62Y281000000
Tool kit
Loading…
↗
