20CMH (1997)
Lower Casing & Drive

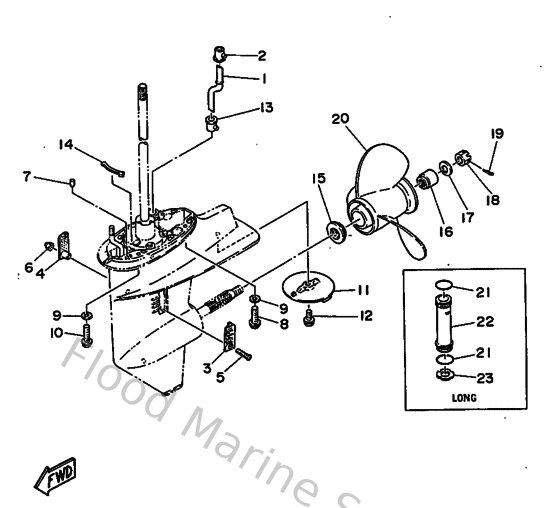

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
664443610000
Tube, water 1
Loading…
↗
2
689443660000
Damper, water seal 2
Loading…
↗
3
689452140100
Cover, water inlet 1
Loading…
↗
4
689452150100
Cover Water Inlet 2
Loading…
↗
5
987800552500
Ybs53-525 screw,flat head
Loading…
↗
6
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
7
936061201900
Pin, dowel (614)
Loading…
↗
8
901051005900
Bolt washer based (664)
Loading…
↗
9
929901060000
Washer, plate
Loading…
↗
10
9010510M1200
Bolt (689)
Loading…
↗
11
664453710100
Tab-trim
Loading…
↗
12
9010508M0200
Bolt hexagon
Loading…
↗
13
626443650100
Damper, water seal 1
Loading…
↗
14
689443140000
Spacer
Loading…
↗
15
664459870100
Spacer
Loading…
↗
16
689459970000
Spacer
Loading…
↗
17
929901420000
Washer, plain
Loading…
↗
18
901711401300
Nut(664)
Loading…
↗
19
914903003000
Pin, cotter
Loading…
↗
20
664459520000
Propeller (3x9-7/8 x14 -f)
Loading…
↗
21
932102624000
O-ring
Loading…
↗
22
689443620094
Tube, Water 2
Loading…
↗
23
689443280300
Plate
Loading…
↗
1
68945300064D
Lower unit assembly
Loading…
↗
2
68945311044D
Casing, lower
Loading…
↗
3
93315017U400
Brg,cyl-cal roller (689)
Loading…
↗
4
689455360000
Sleeve Drive Shaft
Loading…
↗
5
664455870130
Shim (t:0.30mm)
Loading…
↗
6
93332000U400
Brg,tapered roller 42mm (689)
Loading…
↗
7
664455676000
Shim (t:0.50mm)
Loading…
↗
8
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
904300802000
Gasket
Loading…
↗
11
689443110300
Housing, water pump
Loading…
↗
12
689W44320200
Insert cartridge comp.
Loading…
↗
13
689443670100
Rubber, water seal 3
Loading…
↗
14
689443230300
Outer plate, cartridge
Loading…
↗
15
68944324A000
Gasket, cartridge
Loading…
↗
16
689443520200
Impeller
Loading…
↗
17
664443380000
Key, woodruff
Loading…
↗
18
9011906M0700
Bolt, With Washer
Loading…
↗
19
9360410M0300
Pin, dowel (688)
Loading…
↗
20
68944325025B
Protector Oil Seal
Loading…
↗
21
9321040M1000
O-ring (682)
Loading…
↗
22
931012206700
Oil seal (22x36x6-663)
Loading…
↗
23
68944315A000
Gasket, water pump
Loading…
↗
24
689453440094
Cover, oil seal
Loading…
↗
25
68944316A000
Gasket, water pump
Loading…
↗
26
689455010000
Drive shaft comp
Loading…
↗
27
689455510000
Pinion
Loading…
↗
28
9017909M0200
Nut (689)
Loading…
↗
29
689455601000
Gear
Loading…
↗
30
689456110100
Shaft, Propeller
Loading…
↗
31
905011006500
Spring compression648456360000
Loading…
↗
32
664456310100
Clutch, dog
Loading…
↗
33
902500501000
Pin straight 648456320000
Loading…
↗
34
648456331100
Ring, cross pin
Loading…
↗
35
648456350000
Plunger,shift
Loading…
↗
36
902012041700
Washer, plate(663)
Loading…
↗
37
689455710000
Gear 2
Loading…
↗
38
689453310100
Housing, bearing
Loading…
↗
39
933060061200
Bearing(2hr)
Loading…
↗
40
664455770130
Shim (t:0.30mm)
Loading…
↗
41
664455760000
Washer, thrust 2
Loading…
↗
42
9321060MA300
O-ring(6j8)
Loading…
↗
43
933152200400
Brg,cyl-cal roller 21g nt
Loading…
↗
44
9310120M0700
Oil seal
Loading…
↗
45
9021445M0200
Washer, claw(6a9)
Loading…
↗
46
664453840200
Nut
Loading…
↗
47
902820401000
Key, strait(663)
Loading…
↗
48
68944312005B
Cover Water Pump Housing
Loading…
↗
49
970950603500
Bolt(j52)
Loading…
↗
50
929900660000
Washer, plain (646)
Loading…
↗
51
695441500000
Shift Cam Assembly
Loading…
↗
52
664441470000
Boot, shift rod
Loading…
↗
53
689441760100
Bracket
Loading…
↗
54
977805011000
Screw, tapping(6u1)
Loading…
↗
