115DETO (1996)
Lower Casing & Drive 2

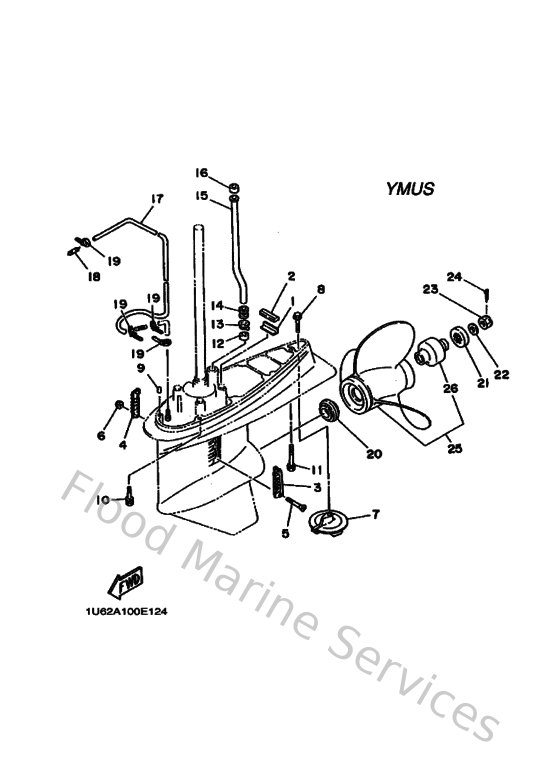

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
663453760094
Guide, seal damper
Loading…
↗
2
688453750000
Damper, seal 2
Loading…
↗
3
62A452140000
Cover, Water Inlet 1
Loading…
↗
4
62A452150000
Cover, Water Inlet 2
Loading…
↗
5
9014205M0400
Screw, countersunk
Loading…
↗
6
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
7
6E5453710100
Trim tab
Loading…
↗
8
9010510M6700
Bolt, hexagon (663)
Loading…
↗
9
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
10
9010110M7000
Bolt(6j9)
Loading…
↗
11
9011910M8900
Bolt, with washer
Loading…
↗
12
6E5443650000
Damper, water seal 1
Loading…
↗
13
6E5443120000
Cover, water pump housing
Loading…
↗
14
6E5443660000
Damper, water seal 2
Loading…
↗
15
6E5443610000
Tube, water
Loading…
↗
17
9044507MF000
Hose (l1160)
Loading…
↗
18
6E5835580000
End, nipple
Loading…
↗
19
9046511M1000
Clamp
Loading…
↗
20
6E5459870100
Spacer 1
Loading…
↗
21
688459970100
Spacer 2
Loading…
↗
22
929901820000
Washer (6e5)
Loading…
↗
23
9017118M0400
Nut, castle (6e5)
Loading…
↗
24
914904003000
Pin, cotter (663)
Loading…
↗
25
62A459700000
Propeller (3X13-1/2X21""-K)
Loading…
↗
26
688459810000
Damper rubber, propeller
Loading…
↗
