Yamaha Outboard Parts - Meter - F80AET (2001) | Flood Marine

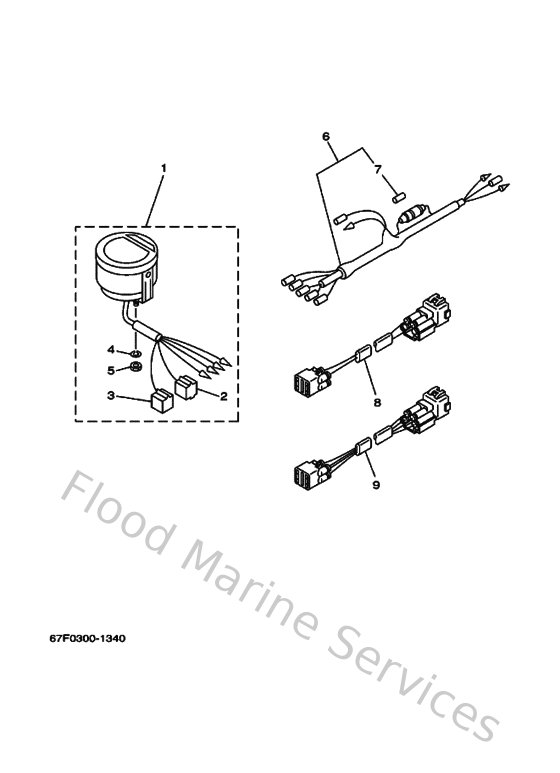

Diagram: Meter

Diagram

Parts List

Reference

Description

Price

1

6Y583500T200

Digital tachometer assembly

Loading…

2

9E4500443300

Housing, connector (m-4-w)

Loading…

3

9E4500453300

Housing, f-4-w(5pcs)

Loading…

4

929900410000

Ybs67-4 washer, spring

Loading…

5

953030460000

Nut, hexagon (663)

Loading…

6

6Y5835530000

Wire, lead (l=2.5m)

Loading…

7

1E6821510000

Loading…

8

6R3825217000

Wire, lead (for tacho., 7m)

Loading…

9

6R3825537000

Extension, wire lead (for trim

Loading…
