25DMH (1987)
Optional Parts 3

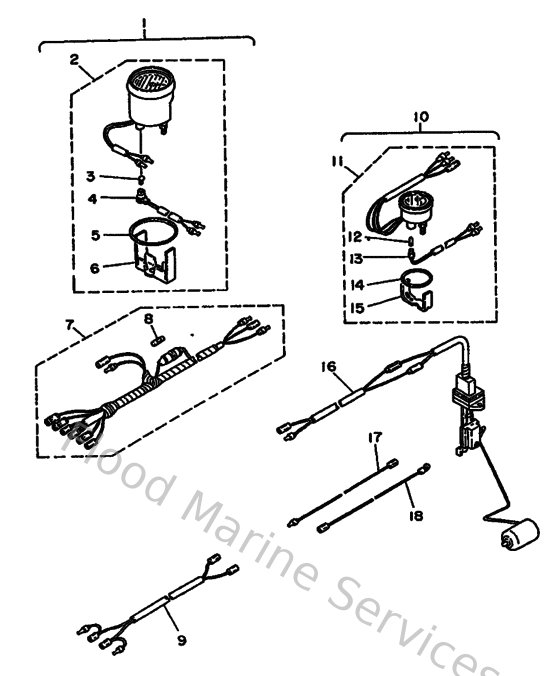

Diagram: Optional Parts 3
Parts List
Reference
Description
Price
1
6Y5W00801000
Tachometer kit
Loading…
↗
2
6Y5835401000
Tachometer kit
Loading…
↗
3
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
4
688835360000
Socket, meter
Loading…
↗
5
6Y5835230000
Damper
Loading…
↗
6
6Y5835140000
Plate, fitting
Loading…
↗
7
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
8
1E6821510000
Fuse (10a)
Loading…
↗
9
6Y5835531000
Wire, lead
Loading…
↗
10
6Y5W00882000
Fuel meter kit
Loading…
↗
11
6Y5857500000
Fuel meter assembly
Loading…
↗
12
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
13
6Y5835360000
Socket, meter
Loading…
↗
14
688836640000
Damper
Loading…
↗
16
688857520100
Sender unit assembly, fuel meter
Loading…
↗
17
66383553Y000
Wire, lead
Loading…
↗
18
66383553A000
Wire, lead
Loading…
↗
