Yamaha Outboard Parts - Optional Parts 4 - 55BM (1990) | Flood Marine
New Search
Parts
New Outboards
Home
55BM (1990)
Optional Parts 4

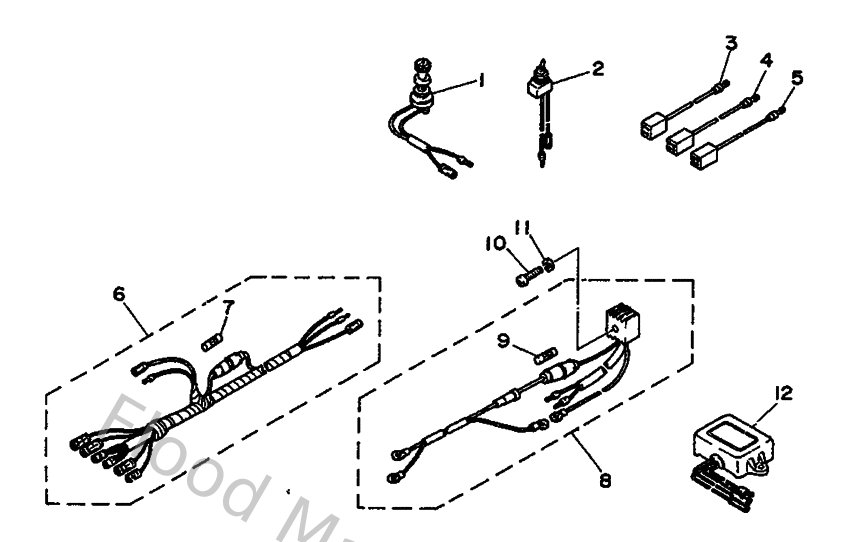

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
688825200000
Lamp switch assembly
Loading…
↗
2
688825260000
Switch, lamp
Loading…
↗
3
6Y5821490000
Wire, lead 3
Loading…
↗
4
6Y5821170000
Wire, lead
Loading…
↗
5
6Y5825210000
Wire, lead
Loading…
↗
6
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
7
1E6821510000
Fuse (10a)
Loading…
↗
8
676819700000
Rectifier assembly
Loading…
↗
9
682821510000
Fuse
Loading…
↗
10
985800553000
Ybs86-530 screw,panhead
Loading…
↗
11
929900510000
Ybs67-5 washer, spring
Loading…
↗
12
663819101000
Voltage Regulator assembly
Loading…
↗
