55BM (1997)
Optionnelles 2

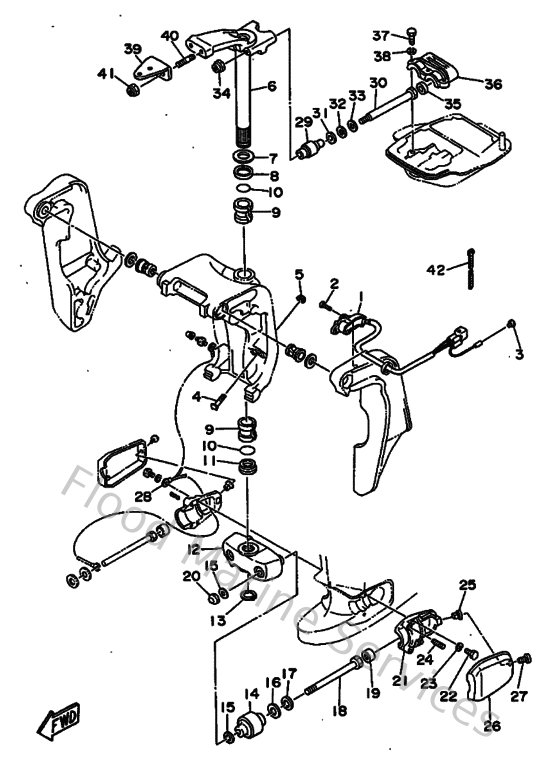

Diagram: Optionnelles 2
Parts List
Reference
Description
Price
1
6H1836721100
Trim sender
Loading…
↗
2
985800501600
Screw, pan head(6b0)
Loading…
↗
3
703821190000
Cover, lead wire
Loading…
↗
4
6H1433760000
Bolt, thrust receiver
Loading…
↗
5
957800830000
Nut, nylon (6j8)
Loading…
↗
6
66342510134D
Steering bracket assembly
Loading…
↗
7
9020130M0000
Washer, plate(6h1)
Loading…
↗
8
9038630M7800
Bush(6h0)
Loading…
↗
9
9038630M7700
Bush(6h0)
Loading…
↗
10
9321029M9400
O-ring(6h1)
Loading…
↗
11
9038630M6000
Bush(6j8)
Loading…
↗
12
66344551024D
Housing, lower mount rubber
Loading…
↗
13
9341028M0600
Circlip (688)
Loading…
↗
14
687445550000
Mount damper, lower side
Loading…
↗
15
9020112M1600
Washer, plate (679)
Loading…
↗
16
9020225M0400
Washer, plate (663)
Loading…
↗
17
9020113M1900
Washer, plate (663)
Loading…
↗
18
901091226100
Bolt(663)
Loading…
↗
19
663445750000
Damper, lower mount rubber
Loading…
↗
20
953801280000
Nut crown(663)
Loading…
↗
21
687445520200
Housing, lower mount rubber
Loading…
↗
22
970950802500
Bolt (62g)
Loading…
↗
23
929900810000
Ybs67-8 washer, spring
Loading…
↗
24
9050114M0800
Spring, compression(64j)
Loading…
↗
25
901790606600
Nut(663)
Loading…
↗
26
66344553018D
Cover, lower mount
Loading…
↗
27
978850601600
Screw, pan head(6b0)
Loading…
↗
28
688821270200
Wire, lead 2
Loading…
↗
29
670445140094
Mount damper, upper side
Loading…
↗
30
901090826200
Bolt(663)
Loading…
↗
31
902011542300
Washer, plate(663)
Loading…
↗
32
902021506500
Washer, plate (663)
Loading…
↗
33
902010942500
Washer, plate (663)
Loading…
↗
34
901850804500
Nut, self-locking
Loading…
↗
35
663445330000
Damper, upper mount
Loading…
↗
36
663445110000
Cover, upper mount
Loading…
↗
37
970950803500
Bolt(70w)
Loading…
↗
39
68848511014D
Hook, steering
Loading…
↗
40
901161006300
Bolt, stud
Loading…
↗
41
901851005100
Nut, self-locking
Loading…
↗
42
9046511M1000
Clamp
Loading…
↗
