15FWH (1995)
Partie Electrique 1

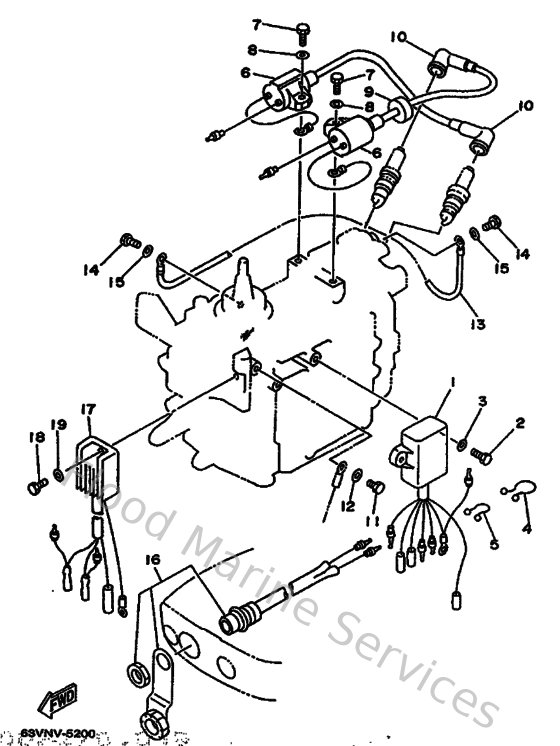

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
63V855400000
C.d.i. unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
904641603900
Clamp (3y2)
Loading…
↗
5
904651814700
Clamp
Loading…
↗
6
63V855700000
Ignition coil assembly
Loading…
↗
7
970950601800
Bolt (fj0)
Loading…
↗
9
904802516100
Grommet(656)
Loading…
↗
10
6E3823702000
Plug cap assembly
Loading…
↗
11
970950601200
Bolt(gh1)
Loading…
↗
13
662825190000
Wire, earth lead
Loading…
↗
14
970800601200
Bolt(gh1)
Loading…
↗
16
682843810000
2p concent 1
Loading…
↗
17
6J8819600000
Rectifier & regulator assembly
Loading…
↗
18
970950601600
Bolt, hexagon deep recess
Loading…
↗
