20CMH (1997)
Partie Electrique 1

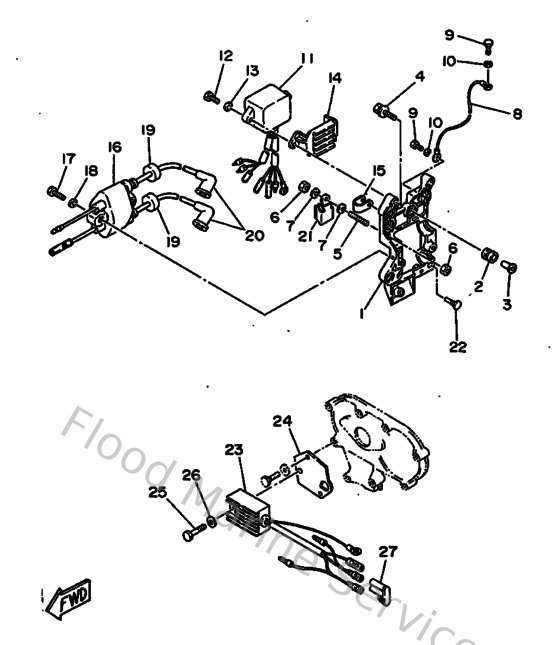

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
695855420094
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M8800
Bolt, with washer
Loading…
↗
5
9011606M0700
Bolt, stud (688)
Loading…
↗
6
953800660000
Nut(661)
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
689825190000
Wire Earth Lead
Loading…
↗
9
970950601200
Bolt(gh1)
Loading…
↗
11
695855401200
C.d.i. unit assembly
Loading…
↗
12
970950602500
Bolt
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
689855480100
Holder
Loading…
↗
16
680855700000
Ignition coil assembly
Loading…
↗
19
904802516100
Grommet(656)
Loading…
↗
20
6G1823702100
Plug cap assembly
Loading…
↗
21
9046508M1300
Clamp (695)
Loading…
↗
22
689855470000
Damper
Loading…
↗
23
6J8819600000
Rectifier & regulator assembly
Loading…
↗
25
970950601600
Bolt, hexagon deep recess
Loading…
↗
27
6E5825820000
Cap 1
Loading…
↗
