40QMH (1997)
Partie Electrique 1

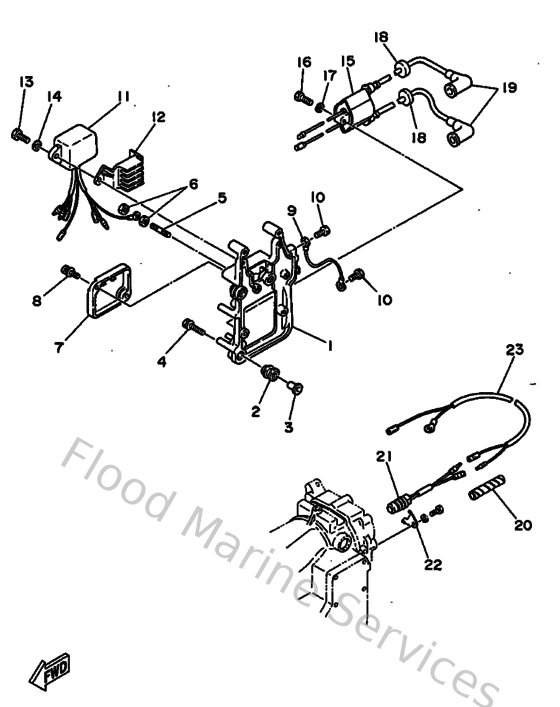

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
6R6855420094
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M4400
Bolt, with washer
Loading…
↗
5
9011606M0700
Bolt, stud (688)
Loading…
↗
6
953800660000
Nut(661)
Loading…
↗
7
6A0819160000
Cover, Terminal
Loading…
↗
8
979850521600
Screw, pan w/ plain
Loading…
↗
9
662825190000
Wire, earth lead
Loading…
↗
10
970950601200
Bolt(gh1)
Loading…
↗
11
689855402000
C.d.i. Unit Assembly
Loading…
↗
12
6A0855480000
Holder
Loading…
↗
13
970950602500
Bolt
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
689855702000
Ignition coil assembly
Loading…
↗
18
904802516100
Grommet(656)
Loading…
↗
19
6G1823702000
Plug cap assembly
Loading…
↗
20
9044610M0200
Tube (6e5)
Loading…
↗
21
6E9825600000
Thermoswitch Assembly
Loading…
↗
22
6E9825880000
Plate
Loading…
↗
